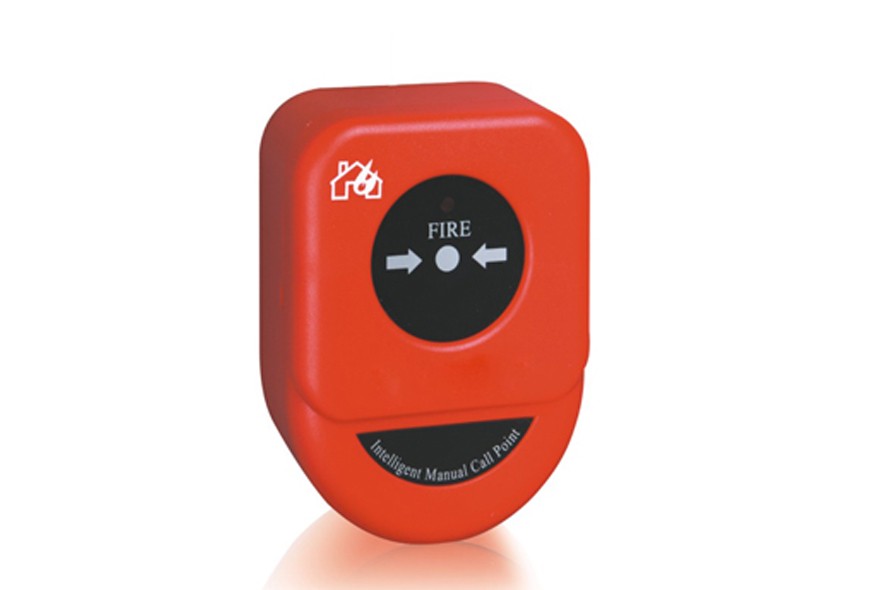

Addressable Manual Call Point


  • Addressable Manual Call Point (MCP) with re-settable (non breakable) glass
  • Additional volt free contacts for local interfacing (i.e PTZ camera preset)
  • Two parts plug-in construction with base mounted termination allows for easy installation and connection
  • MCP can be addressed and plugged in to base at the time of commissioning
  • Electronically addressable
  • Suitable for semi-flush and surface mount installation

Technical Specifications

  1. Operating Voltage:24 VDC Loop
  2. Operating Current: Standby current 0.6mA; Alarm current 1.8mA
  3. N/O Output Contact: Rating 60VDC, 0.1A
  4. Contact Resistance : 100m Ω
  5. Operating Environment : Temperature: -10~+50°C ; Relative Humidity: 95%
  6. Dimensions: 90 mm * 122 mm * 48.5 m
