Home Page » Fire Alarm System » Addressable Single I/O Module Loop Powered

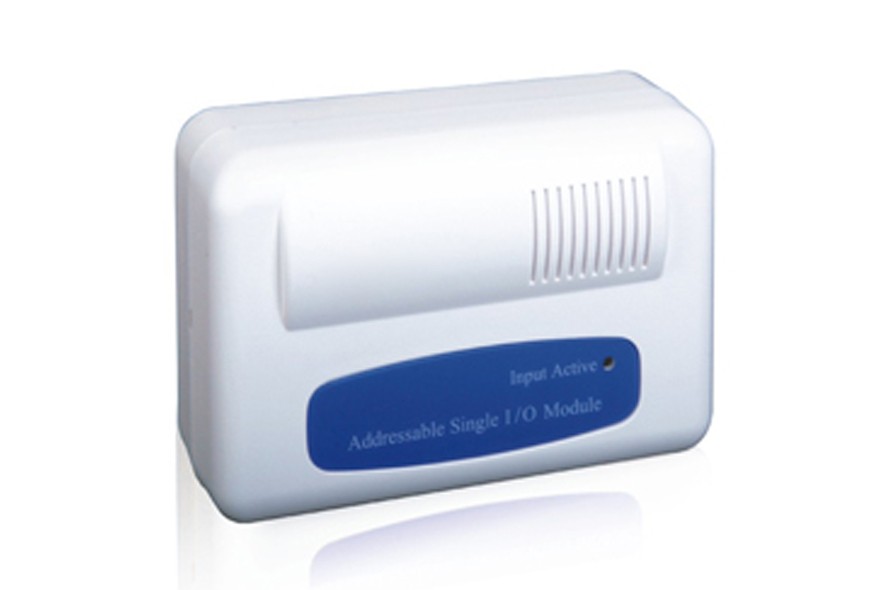

Addressable Single I/O Module Loop Powered


  • Addressable I/O with 24V / 3Amp relay output contacts
  • Input can be configured as NO / NC or self confirmation of output (Programmable via D-APP handheld programmer)
  • Two part plug-in construction with base mounted termination allows easy installation and connection
  • Intelligent interface can be addressed and plugged into the base during the time of commissioning
  • Electronically addressable

Technical Specifications

  1. Operating Voltage: 24 V Loop
  2. Operating Current:
    • Standby Current 1mA
    • Action Current 5mA
  3. Wiring: Non-polarized 2-core for loop
  4. Operating Environment:
    • Temperature: -10~+50°C
    • Relatives Humidity: 95%
  5. Dimensions: 120mm x 80mm x 40mm
