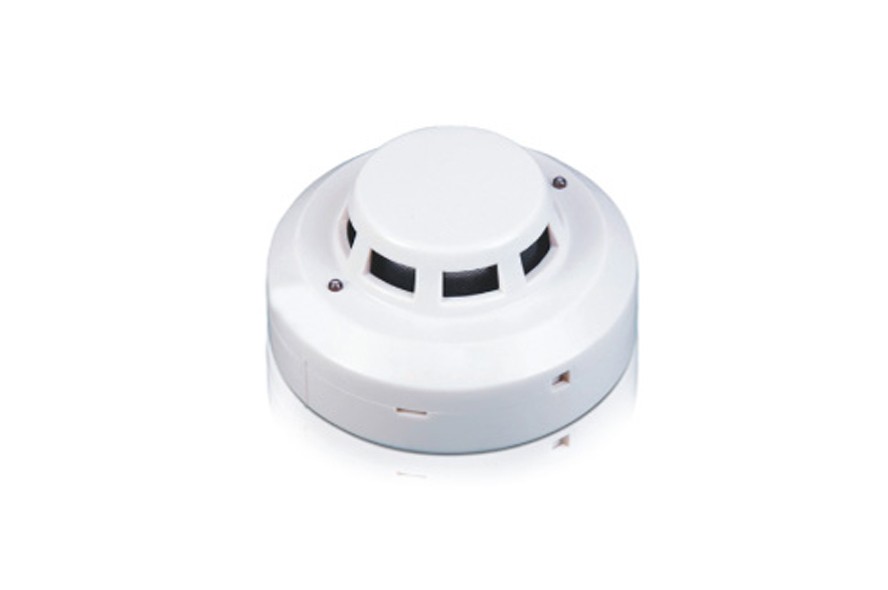

Intelligent Optical Smoke Detector


  • 8 Bit intelligent processor with A/D converter
  • Built in algorithm maps for false alarm rejection
  • Electronically addressable
  • Aesthetically pleasing low profile design
  • Twin LED for 360° vision
  • With Remote Indicator output
  • Sensitivity adjustable via hand held programming tool
  • Removable optical chamber for easy cleaning and maintenance

Technical Specifications

  1. Operating Voltage: 24 VDC Loop
  2. Operating Current:
    • Standby Current: 0.8mA
    • Alarm Current: 2mA (5mA for RI)
  3. Operating Environment:
    • Temperature: -10~+50°C
    • Relatives Humidity: 95%
  4. Dimensions: Diameter 100mm, Height 50mm
