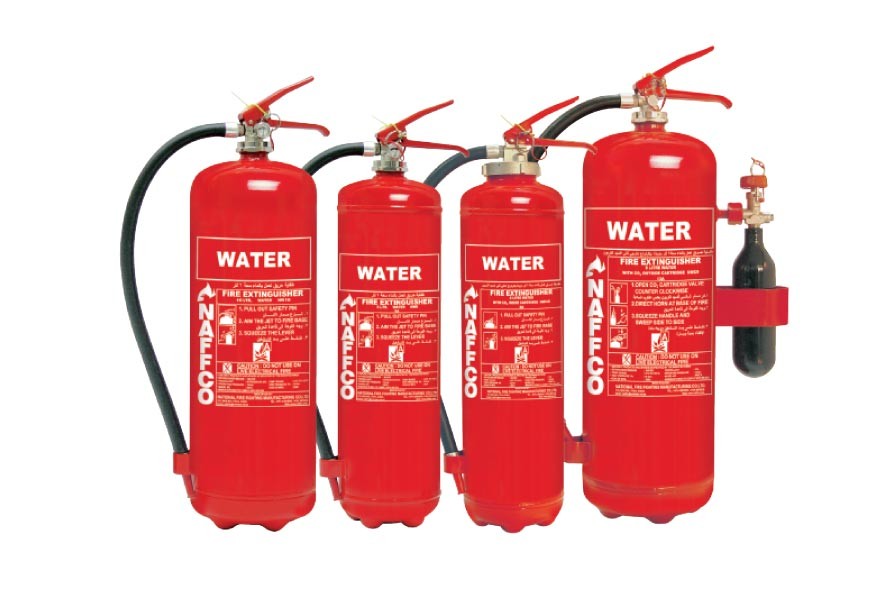

| Portable Fire Extinguishers - Stored Pressure / Cartridge Ty |
SPECIFICATIONS:
| Type |
Stored Pressure |
External Cartridge |
Internal Cartridge |
| Model |
NW6 |
NW9 |
NWC6 |
NWC9 |
NWC10 |
NWIC6 |
NWIC9 |
| Extinguisher Capacity |
6Litres |
9Litres |
6Litres |
9Litres |
10Litres |
6Litres |
9Litres |
| Fire Rating |
13A |
13A |
13A |
13A |
13A |
13A |
13A |
| Working Pressure |
15Bar |
15Bar |
14 -15Bar |
14 -15Bar |
14 -15Bar |
14 -15Bar |
14 -15Bar |
| Test Pressure |
30Bar |
30Bar |
30Bar |
30Bar |
30Bar |
30Bar |
30Bar |
| Total Weight |
11.5Kg |
15.5Kg |
13Kg |
17Kg |
18Kg |
12Kg |
16.5Kg |
| Range of Discharge |
6m |
6-7m |
6-7m |
6-7m |
7-8m |
8m |
9m |
| Duration of Discharge (Minimum) |
20Sec |
30Sec |
20Sec |
30Sec |
25Sec |
20Sec |
35sec |
| Operating Temperature |
+5°C to +60°C |
Features :
- Ready for instant use.
- Heavy duty steel cylinder.
- Made of special CRCA sheet with Argon/CO2 welding process.
- Simple operation and maintenance.
- Cylinders are 100% factory tested to 30 bar.
- Nickel plated Brass Valve with reliability and long life.
- Precision built mechanical pressure gauge.
- Electrostatic powder painting after shot blasting ensures maximum corrosion resistance.
- Internally coated with Polyolefin – based thermosetting polymer powder resin using whirl sintering process.
- Cartridge type extinguishers are incorporated with CO2 cartridge.
Options :
- Special Extinguishers which are freeze protected
- Extinguishers made of stainless steel is available upon request
- Portable Extinguishers with Plastic Base
- For mobile extinguisher with 3 wheels suffix “S”
|
|
|
|
