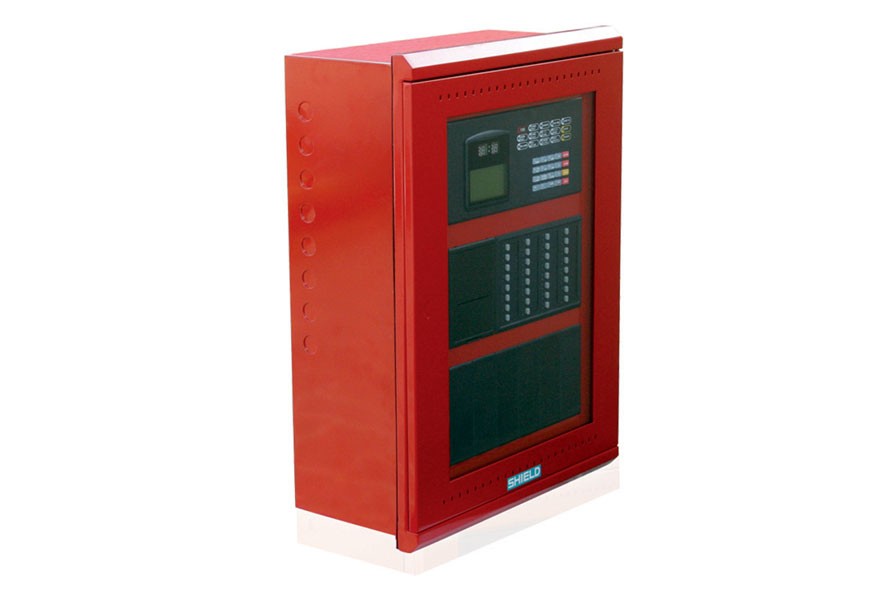

Intelligent Fire Alarm Control Panel

Features

  • Listed to LPCB
  • Two loop addressable fire detection panel packed with features not usually associated with smaller systems, providing a high quality solution at exceptionally good value.
  • Loop capacity 447 intelligent devices.
  • 30 logical configurable zones
  • PAS and Acknowledge function
  • Dirty detector reporting
  • One man test function
  • Graphical LCD Display
  • Zone indication and manual intervention panel.
  • Networkable with all shield intelligent fire panels
  • Programmable from PC
  • Build-in RS 485 repeater output ( Maximum 10 repeaters)
  • Optional GMC system
  • Optional fireman’s control panel
  • Optional panel printer
  • Advanced user friendly programming software including Fuzzy logic.

Technical Specifications

  • Standard: EN54 Part 2/4
    Approvals: LPCB, CE
  • Main input voltage: 220 +/- 10 % VAC 50/60 Hz
  • Input current Rating: 0.500A
  • System Operating Voltage: 24 VDC Nominal (20-27 VDC)
  • Loop Capacity: Loop 1:235 ; Loop 2:242 (Address)
    Sounder Circuits:
  • Fire Alarm Output: 500mA / 24 Vdc / NO-NC
    F.P.E Output: 500mA / 24 Vdc / NO-NC
    Sounder CircuitOutput: 500mA / 24 Vdc / NO-NC
  • Dimension (HLW)
    Outer: 580 x 420 x 30 mm
    Inner: 550 x 393 x 173 mm
