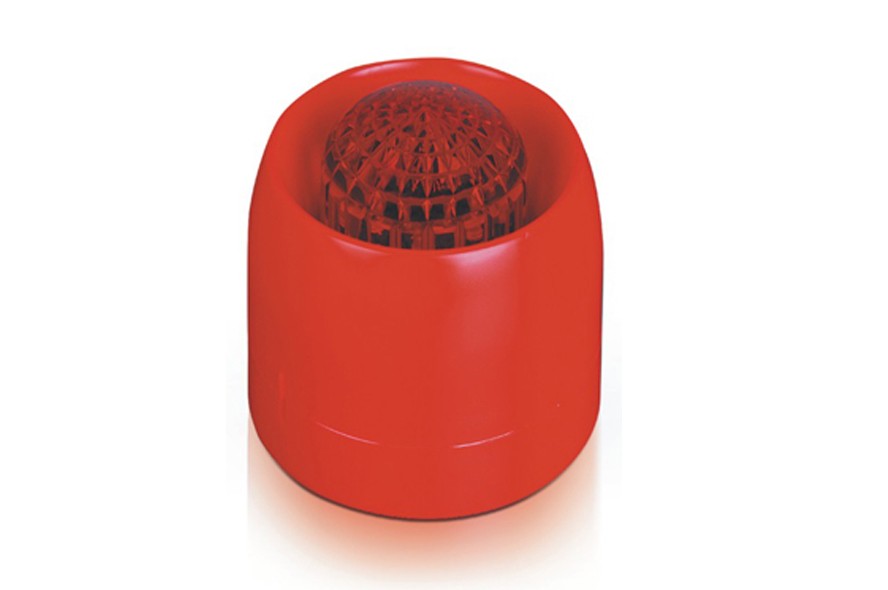

Addressable Sounder and Strobe |
Features
- Two parts construction with base mounted termination allows easy installation
- Evacuate only or Alert / Evacuate mode can be set through handheld programmer
- Remote start input can be used to co-operate with other systems
- Strobe provided by high intensity LED cluster
- Electronically addressable
Technical Specifications
- Operating Voltage: 24VDC Loop, 24 VDC Power Supply
- Operating Current: Loop Standby Current 1mA, Alarm Current 3mA
Power Supply: Standby Current 3mA, Alarm Current 50mA - Sounder Output: 94dB @ 1 Meter
- Wiring: Non-polarized 2-core for loop
Non-polarized 2-core for power supply - Operating Environment: Temperature : -10~+50°C ; Relative Humidity : 95%
- Dimensions: Diameter 110mm, Height 97.5mm
|
|
|
|
