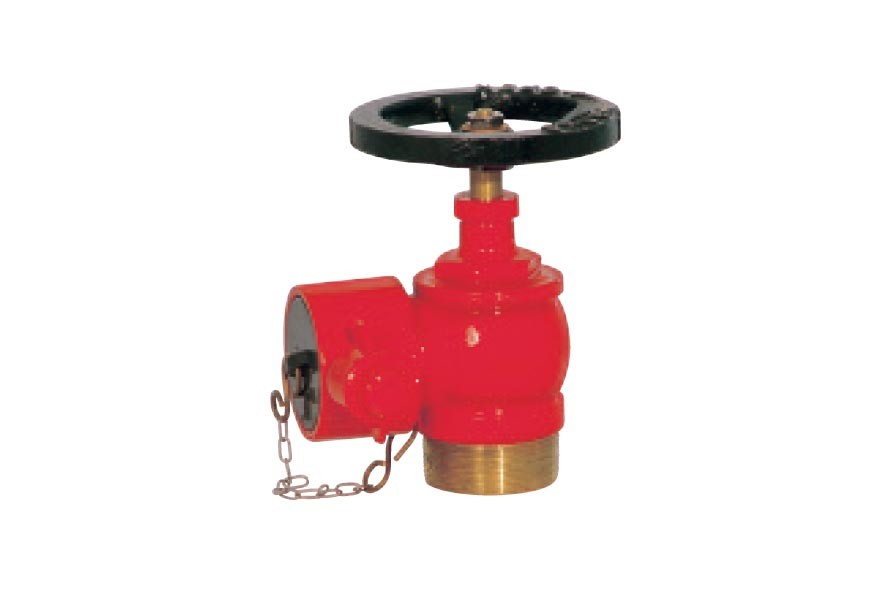

Right Angle Landing Valve

SPECIFICATIONS:

Model No NDR 106 Flanged Inlet (to BS 4504 part 2: 1974)
Model No NDR 105 Screw Thread Inlet to BS21
Size 2.5" Ø

GENERAL SPECIFICATIONS :

Body Copper Alloy to BS EN 12163 : 1998
Hand Wheel Spheroidal Graphite Cast Iron to BSEN 1563 : 1997
Outlet Instantaneous to BS 336 : 1989
Working Pressure 15 Bar (Max)
Test Pressure 22.5 Bar
