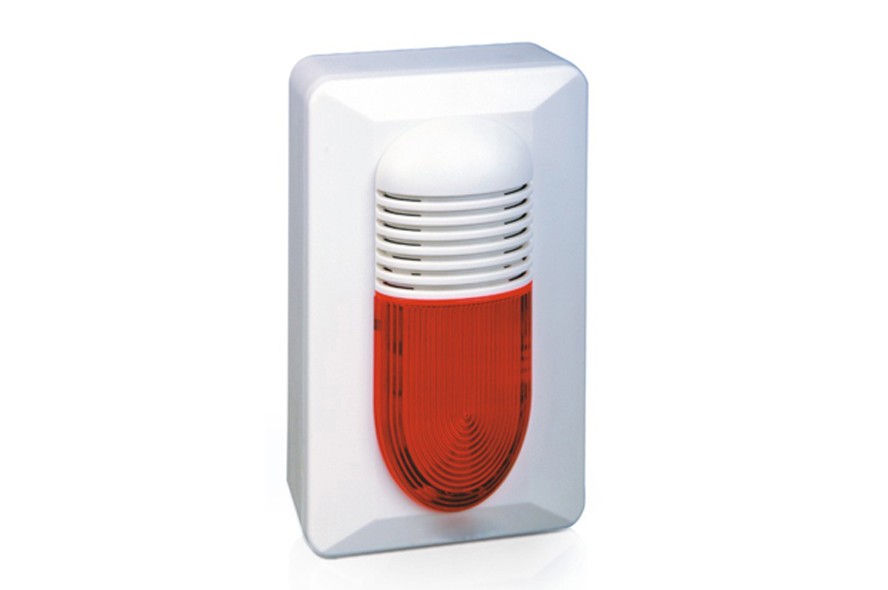

Addressable Sounder Beacon

Features

  • Addressable combined flashing high intensity LED beacon and sounder
  • Two part plug-in construction with base mounted termination allowing easy installation and connection
  • Electronically addressable

Technical Specifications

  1. Operating Voltage: 24 VDC Loop, 24 VDC Power Supply
  2. Operating Current( Loop) : Standby Current 0.8mA, Alarm Current 6.0mA
    Power Supply: Standby Current 10mA, Alarm Current 160mA
  3. Alarm Volume (SPL): 95dB @ 1 Meter
  4. Wiring: Non polarized 2-core for loop
    Non-polarized 2-core for power supply
  5. Operating Environment: Temperature : -10~+50°C ; Relative Humidity : 95%
  6. Dimensions: 144mm * 90mm * 57mm
