Home Page » Fire Extinguishers » Automatic Dry Powder Units

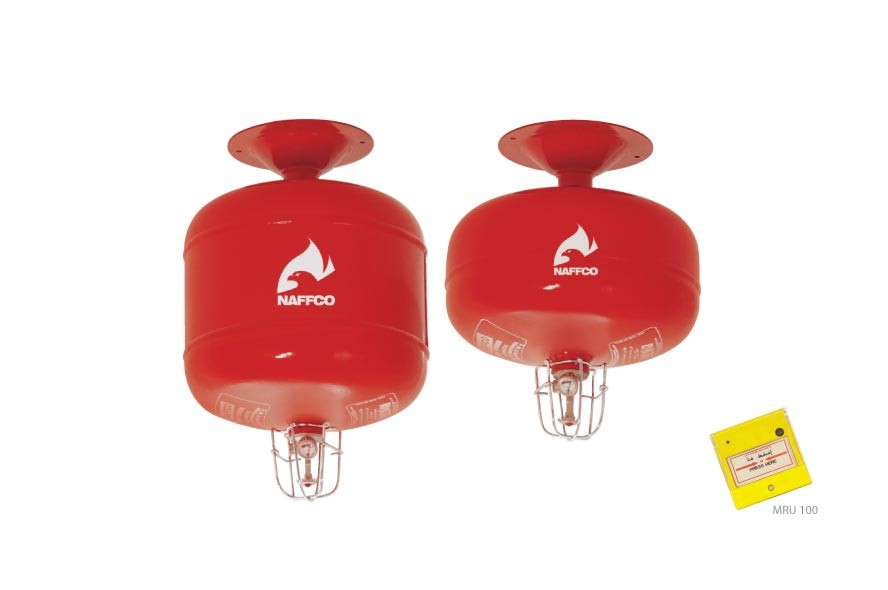

Automatic Dry Powder Units

SPECIFICATIONS

Model ND4.5 MATIC ND6 MATIC ND10 MATIC ND12 MATIC ND15 MATIC ND20 MATIC ND25 MATIC ND30 MATIC
Extinguisher capacity 4.5kg 6kg 10kg 12kg 15kg 20kg 25kg 30kg
Working pressure   15bar
Test pressure   30bar
Total weight   8.5kg 10.5kg 15.5kg 17.6kg 25kg 33.5kg 39kg 45kg
Distance between unit & risk   1.5 - 4m
Duration of discharge   10-12 sec 14-16 sec 16-18 sec 18-22 sec 22-26 sec 26-31 sec 30-35 sec 35-40 sec
Protected area of coverage 10m2 (effective when mounted at 3meter height)
Operating temperature 68°c, optional: 79°c / 93°c

Features :

  • Ready for immediate risk protection, no need for piping.
  • Fully automatic release to extinguish class a, b, c & electrical fires effectively.
  • Different sizes are available to protect various sizes of hazard areas.
  • Rigid construction to provide maximum protection for the risk areas.
  • Easy assembly and easy maintenance.
  • Electrostatic powder painting after shot blasting ensures maximum corrosion resistance.

Applications :

Well suited for oil furnaces, paint spray booths, flammable liquid storage areas, electrical
Hazard areas etc.
