| Breeching Inlets |

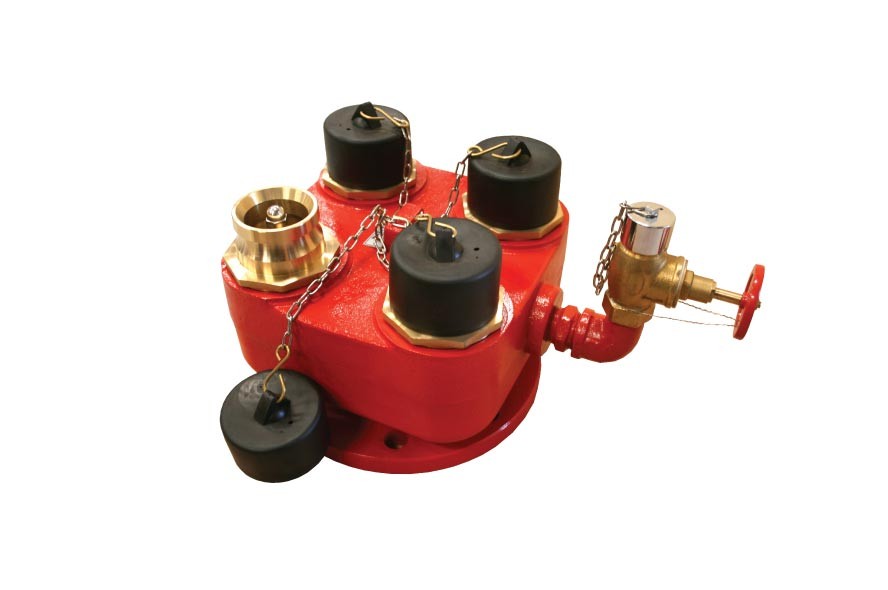

Breeching inlets are suitable for installation
on dry risers only, in a building for fire fighting purposes, fitted
with inlet connection at fire brigade access level and outlet connection
at specified points, which is normally dry but capable of being charged
with water by pumping from the service appliances. The Breeching inlets
are manufactured to comply BS 5041 Part-3: 1975 standard comprising of
Male Instantaneous connections complying with BS 336:1989, drain valves
PN16 rated and non-return valves.
SPECIFICATIONS:
| Model No |
NBI 115 4-Way Breeching Inlet (Manufactured & comply to BS 5041-3-1975) |
| Body |
Spheroidal Graphite Iron to BS EN 1563:1997 |
| Inlet |
4 no's Male instantaneous coupling with NRV to BS 336: 1989 |
| Outlet |
6" Flange |
| Working Pressure |
10 Bar |
| Test Pressure |
20 Bar |
|
|
|
|
