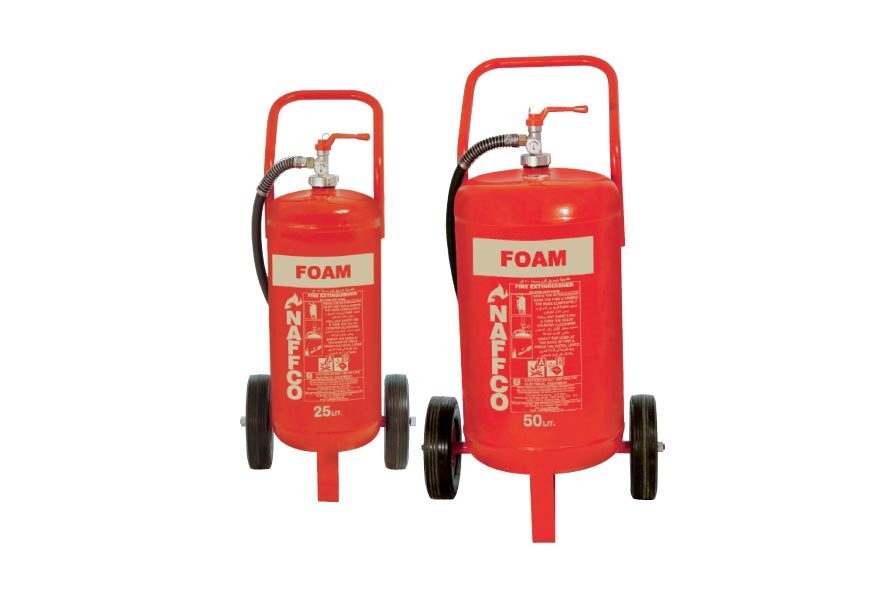

| Mobile Foam (AFFF) Extinguishers : Stored Pressure |
Stored Pressure :
| Model |
NTF25 |
NTF10G |
NTF50 |
NTF100 |
NTF35G |
| Extinguisher Capacity |
25Litres |
10Gallons |
50Litres |
100Litres |
35Gallons |
| Fire Rating |
13A IB |
13A IB |
13A IIB |
13A IIIB |
13A IVB |
| Working Pressure |
15Bar |
| Test Pressure |
30Bar |
| Total Weight |
58Kg |
70Kg |
95Kg |
170Kg |
227Kg |
| Range of Discharge |
7-8m |
7-8m |
7-8m |
7-8m |
7-8m |
| Duration of Discharge |
25-30Sec |
30-33Sec |
45-50Sec |
90-95Sec |
110-115Sec |
| Operating Temperature |
+ 5°C to + 60°C |
| Hose Length |
3m |
3m |
5m |
7m |
7m |
External CO2 Cartridge :
| Model |
NTFC25 |
NTFC10G |
NTFC50 |
NTFC100 |
NTFC35G |
| Extinguisher Capacity |
25Litres |
10Gallons |
50Litres |
100Litres |
35Gallons |
| Fire Rating |
13A IB |
13A IB |
13A IIB |
13A IIIB |
13A IVB |
| Working Pressure |
15Bar |
| Test Pressure |
30Bar |
| Total Weight |
65Kg |
82Kg |
102Kg |
189Kg |
236Kg |
| Range of Discharge |
7-8m |
7-8m |
7-8m |
7-8m |
7-8m |
| Duration of Discharge |
25-30Sec |
30-33Sec |
45-50Sec |
90-95Sec |
110-115Sec |
| Operating Temperature |
+ 5°C to + 60°C |
| Hose Length |
3m |
3m |
5m |
7m |
7m |
Features :
- Ready for instant use and simple to operate.
- Fully controlled and easy operation by rust free brass valve.
- Cart and cylinder are made of rugged steel and welded to meet extreme use conditions.
- Easily transportable.
- Highly visible pressure-indicating gauge.
- Electrostatic powder painting after shot blasting ensures maximum corrosion resistance.
- Internally coated with Polyolefin & thermosetting polymer powder using resin for corrosion resistance.
Options :
- For three wheels, suffix “S”
- Other hose lengths available upon request
- Special Extinguishers which are freeze protected up to -20°C
|
|
|
|
