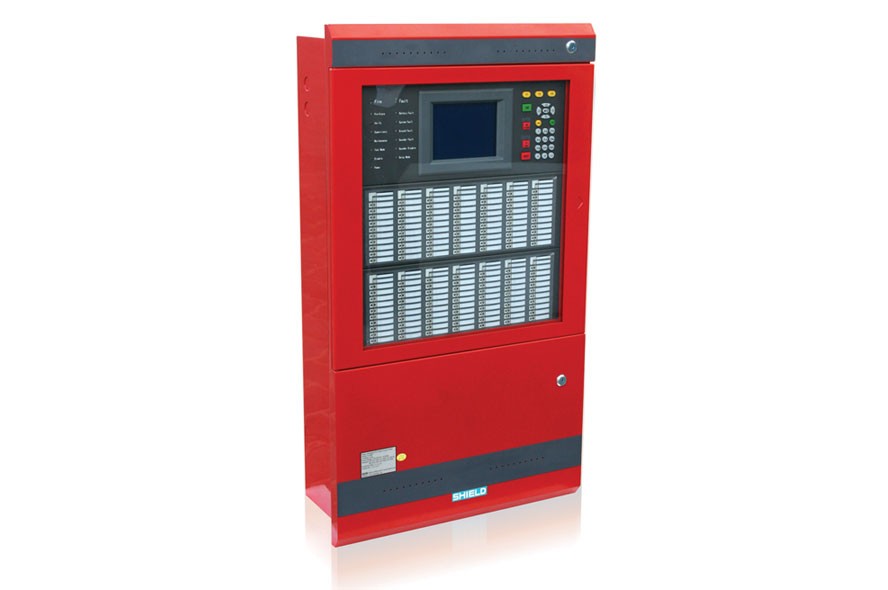

Intelligent Fire Alarm Control Panel

Features

  • Listed to LPCB
  • 8xLoops (242) Capacity (1936) addressable points
  • Maximum 10 loops Standalone
  • 40x15 lines color Graphical LCD Display
  • Up to 999 programmable zones and 140 zone indication
  • Auto programming day and night mode
  • Enable and acknowledge function
  • PAS and acknowledge function
  • Dirty detector reporting
  • Duplicate address checking
  • Device Mismatch
  • Walk test function with optional silent mode
  • Can edit device detailed and programmed
  • Programmable from PC to Panel
  • History record – 999 fire incident only and 999 event capacity in non – volatile memory fully simulation of cause and effect
  • Advanced user friendly programming software including Fuzzy logic.
  • Networked with all shield intelligent fire panels up to 64 Nodes, Optional Fiber optic and LAN network interface.
  • Optional RS 485 mimic and repeater up to 64
  • Optional RS 323 – USB CRT interface, including shield GMC graphic
  • Build in fire alarm, FPE, fault and alarm router output.
  • Panel printer included
  • Build a battery charger

Technical Specifications

  1. Standard: EN54 Part 2/4
    Approvals: LPCB, CE
  2. Main input voltage: 220 +/- 10 % VAC 50/60 Hz
  3. Input current Rating: 1 Amphere
  4. System Operating Voltage: 24 VDC Nominal (20-27 VDC)
  5. Loop Capacity: Loop 1-10 ; Loop 242 (Address per loop)
  6. Zone capacity: 999 zones programmable
    Sounder Circuits:
  7. Fire Routing: 200mA / 24 Vdc / 4.7 Ω EOLR
    F.P.E Output: 500mA 24 Vdc / 4.7Ω EOLR
  8. Sounder circuit output: 1A / 24 Vdc / 4.7 Ω EOLR
    Dimension (HLW)
    Outer: 850 x 484 x 185 mm
    Inner: 804 x 440 x 150 mm
