Intelligent Ultraviolet Flame Detector / D-A413

Home Page » Fire Alarm System » Intelligent Ultraviolet Flame Detector

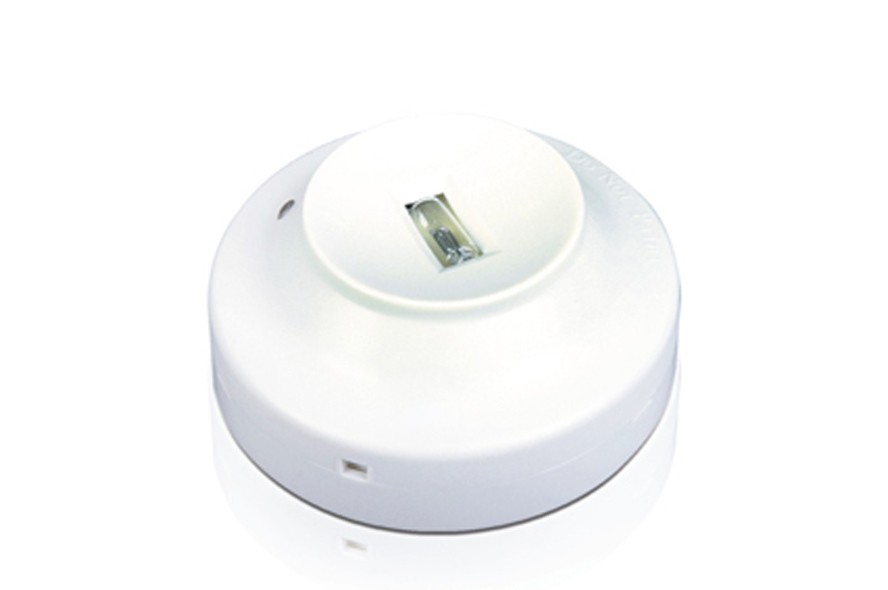

Intelligent Ultraviolet Flame Detector

Features

  • Aesthetically pleasing low profile design
  • Sensitive Ultraviolet sensor that detects the UV rays produced by a Flame
  • Dust / corrosion / humidity resistant
  • Electronically addressable
  • Standard calibration which is set to detect a 3cm flame at 6 metres
  • Effective range of 12 meters

Technical Specifications

  1. Operating Voltage: 24VDC Loop
  2. Operating Current: Standby Current:2mA ; Alarm Current: 2.5mA
  3. Operating Environment: Temperature : -10~+50°C ; Relative Humidity : 95%
  4. Direction Angle: 80°
  5. Dimensions: 100mm, Height 41mm
