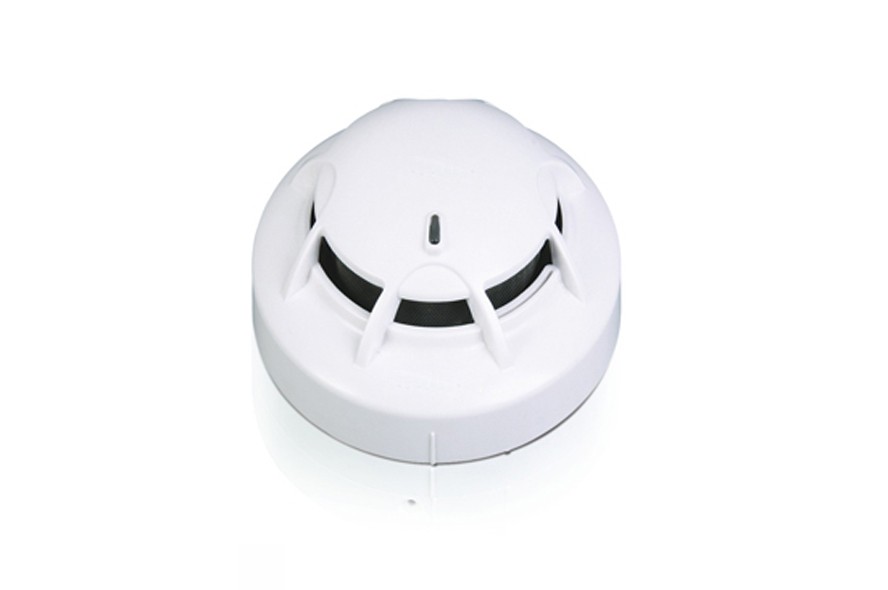

Innovative Optical Smoke Detector

Features

  • Intelligent drift compensation
  • Algorithm maps for faster response and false alarm rejection
  • Sensing chamber for exceptional dust proof ability and LED for 360’ vision
  • Built in remote indicator output
  • Unique low profile design
  • EN54 compliance

Technical Specification

  1. Standard: EN54-part 7
  2. Operating Voltage: 24 VDC
  3. Operating Current: Standby Current: 0.06mA; Alarm Current: 30mA
  4. Operating Environment: Temperature: -10~ +50’C; Relative Humidity: 95%
  5. Field Programmable Sensitivity: 0.102dB/m ~ 0.316dB/m-3 levels
  6. Dimensions: Diameter 100mm, Height 44.5mm
