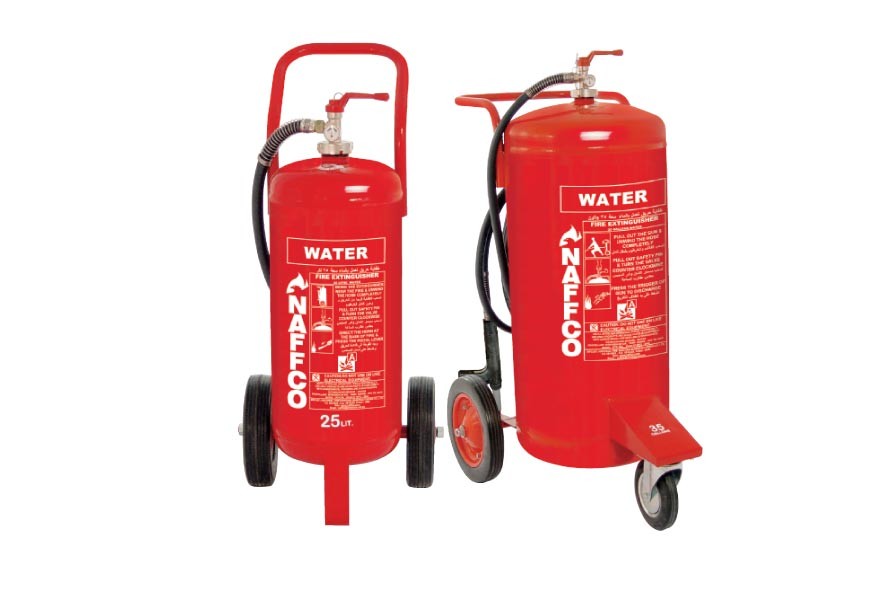

| Mobile Extinguishers - Stored Pressure |
SPECIFICATIONS:
| Type |
NTW25 |
NTW10G |
NTW50 |
NTW100 |
NTW35G |
| Extinguisher Capacity |
25Litres |
10Gallons |
50Litres |
100Litres |
35Gallons |
| Fire Rating |
21A |
21A |
21A |
21A |
21A |
| Working Pressure |
15Bar |
| Test Pressure |
30Bar |
| Total Weight |
58Kg |
70Kg |
95Kg |
170Kg |
227Kg |
| Range of Discharge |
7-8m |
9-10m |
9-10m |
9-10m |
10-11m |
| Duration of Discharge |
25-30Sec |
35-40Sec |
45-50Sec |
90-95Sec |
110-115Sec |
| Operating Temperature |
+5°C to +60°C |
| Hose Length |
3m |
3m |
5m |
7m |
7m |
Features :
- Ready for instant use.
- Heavy duty steel cylinder.
- Made of special CRCA sheet with Argon/CO2 welding process.
- Simple operation and maintenance.
- Cylinders are 100% factory tested to 30 bar.
- Nickel plated Brass Valve with reliability and long life.
- Precision built mechanical pressure gauge.
- Electrostatic powder painting after shot blasting ensures maximum corrosion resistance.
- Internally coated with Polyolefin – based thermosetting polymer powder resin using whirl sintering process.
- Cartridge type extinguishers are incorporated with CO2 cartridge.
options :
- Special Extinguishers which are freeze protected
- Extinguishers made of stainless steel is available upon request
- Portable Extinguishers with Plastic Base
- For mobile extinguisher with 3 wheels suffix “S”
|
|
|
|
