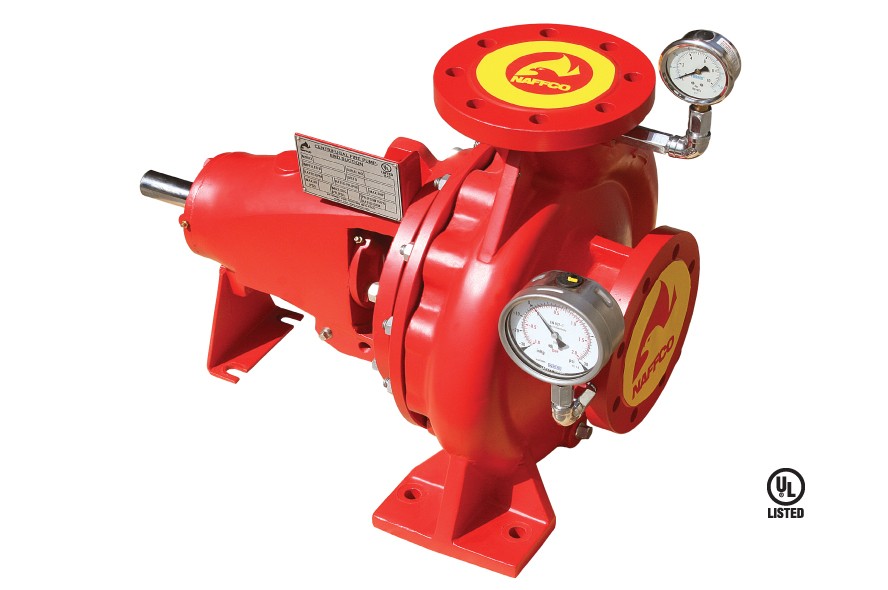

Fire Fighting Pumps
NAFFCO’s new range of UL listed and FM approved fire pumps provides you a
reliable solution for your fire fighting pump needs by combining the
stringent quality measures of UL and NFPA standards with our proven
experience in the fire protection field.
We can offer you a complete package of service starting from engineering
assistance to field start-up and periodic maintenance. Each pump set is
tested in our factory, prior to dispatch, as per UL and NFPA standards.
These pumps are covered by a warranty of one year subject to standard
terms and conditions.
Features
- Complete unit responsibility.
- Complete in-house fabrication capabilities.
- Hydrostatic strength testing facilities.
- Operation run test as per NFPA and UL standards.
- End suction models for capacities from 50 to 500 US gpm various pressures in head.
- Drivers: Electric motor drive or diesel engine drive.
- Electrical testing capabilities for motors and controllers as per NFPA standards.
- Capable to supply additional accessories wherever required.
- Capable to supply single skid mounted fire pump set.
Approved Fire Pump Ratings : RATED CAPACITY - 50 US GPM
| Pump Model |
UL Listed Pressure (PSI) |
FM Approved Pressure (PSI) |
Rated Speed (RPM) |
Suction Inlet Dia (Inch) |
Discharge Outlet Dia (Inch) |
Stage(s) |
| NF-E-32-20 |
50-87 |
--- |
2900 |
2 |
1 1/4 |
1 |
| NF-E-32-26 |
88-139 |
--- |
2900 |
2 |
1 1/4 |
1 |
| NF-E-40-20 |
59-95 |
--- |
2900 |
2.5 |
1.5 |
1 |
| NF-E-40-26 |
77-128 |
--- |
2900 |
2.5 |
1.5 |
1 |
| NF-E-50-20 |
58-89 |
--- |
2900 |
2.5 |
2 |
1 |
| NF-E-50-26 |
93-138 |
--- |
2900 |
2.5 |
2 |
1 |
| NF-E-65-20 |
58-89 |
--- |
2900 |
3 |
2.5 |
1 |
Approved Fire Pump Ratings : RATED CAPACITY - 100 US GPM
| Pump Model |
UL Listed Pressure (PSI) |
FM Approved Pressure (PSI) |
Rated Speed (RPM) |
Suction Inlet Dia (Inch) |
Discharge Outlet Dia (Inch) |
Stage(s) |
| NF-E-32-26 |
126 |
--- |
2900 |
2 |
1 1/4 |
1 |
| NF-E-40-20 |
53-92 |
--- |
2900 |
2.5 |
1.5 |
1 |
| NF-E-40-26 |
70-124 |
--- |
2900 |
2.5 |
1.5 |
1 |
| NF-E-50-20 |
61-91 |
--- |
2900 |
2.5 |
2 |
1 |
| NF-E-50-26 |
93-139 |
--- |
2900 |
2.5 |
2 |
1 |
| NF-E-65-20 |
58-88 |
--- |
2900 |
3 |
2.5 |
1 |
Approved Fire Pump Ratings : RATED CAPACITY - 150 US GPM
| Pump Model |
UL Listed Pressure (PSI) |
FM Approved Pressure (PSI) |
Rated Speed (RPM) |
Suction Inlet Dia (Inch) |
Discharge Outlet Dia (Inch) |
Stage(s) |
| NF-E-40-26 |
114 |
--- |
2900 |
2.5 |
1.5 |
1 |
| NF-E-32-26 |
88-139 |
--- |
2900 |
2 |
1 1/4 |
1 |
| NF-E-50-20 |
62-93 |
--- |
2900 |
2.5 |
2 |
1 |
| NF-E-40-26 |
90-139 |
--- |
2900 |
2.5 |
2 |
1 |
| NF-E-65-20 |
56-86 |
--- |
2900 |
3 |
2.5 |
1 |
Approved Fire Pump Ratings : RATED CAPACITY - 200 US GPM
| Pump Model |
UL Listed Pressure (PSI) |
FM Approved Pressure (PSI) |
Rated Speed (RPM) |
Suction Inlet Dia (Inch) |
Discharge Outlet Dia (Inch) |
Stage(s) |
| NF-E-65-26 |
92-141 |
94-144 |
2900 |
3 |
2.5 |
1 |
| NF-E-65-32 |
133-211 |
135-216 |
2900 |
3 |
2.5 |
1 |
Approved Fire Pump Ratings : RATED CAPACITY - 250 US GPM
| Pump Model |
UL Listed Pressure (PSI) |
FM Approved Pressure (PSI) |
Rated Speed (RPM) |
Suction Inlet Dia (Inch) |
Discharge Outlet Dia (Inch) |
Stage(s) |
| NF-E-65-26 |
89-140 |
91-143 |
2900 |
3 |
2.5 |
1 |
| NF-E-65-32 |
132-210 |
133-211 |
2900 |
3 |
2.5 |
1 |
| NF-E-80-32 |
126-208 |
--- |
2900 |
4 |
3 |
1 |
Approved Fire Pump Ratings : RATED CAPACITY - 300 US GPM
| Pump Model |
UL Listed Pressure (PSI) |
FM Approved Pressure (PSI) |
Rated Speed (RPM) |
Suction Inlet Dia (Inch) |
Discharge Outlet Dia (Inch) |
Stage(s) |
| NF-E-65-26 |
87-139 |
88-142 |
2900 |
3 |
2.5 |
1 |
| NF-E-65-32 |
129-209 |
130-206 |
2900 |
3 |
2.5 |
1 |
| NF-E-80-26 |
87-135 |
93-145 |
2900 |
4 |
3 |
1 |
| NF-E-80-32 |
125-207/td> |
132-213 |
2900 |
4 |
3 |
1 |
Approved Fire Pump Ratings : RATED CAPACITY - 350 US GPM
| Pump Model |
UL Listed Pressure (PSI) |
FM Approved Pressure (PSI) |
Rated Speed (RPM) |
Suction Inlet Dia (Inch) |
Discharge Outlet Dia (Inch) |
Stage(s) |
| NF-E-80-26 |
--- |
91-144 |
2900 |
4 |
3 |
1 |
| NF-E-80-32 |
--- |
131-211 |
2900 |
4 |
3 |
1 |
Approved Fire Pump Ratings : RATED CAPACITY - 400 US GPM
| Pump Model |
UL Listed Pressure (PSI) |
FM Approved Pressure (PSI) |
Rated Speed (RPM) |
Suction Inlet Dia (Inch) |
Discharge Outlet Dia (Inch) |
Stage(s) |
| NF-E-80-26 |
84-133 |
88-142 |
2900 |
4 |
3 |
1 |
| NF-E-80-32 |
122-204 |
130-209 |
2900 |
4 |
3 |
1 |
Approved Fire Pump Ratings : RATED CAPACITY - 450 US GPM
| Pump Model |
UL Listed Pressure (PSI) |
FM Approved Pressure (PSI) |
Rated Speed (RPM) |
Suction Inlet Dia (Inch) |
Discharge Outlet Dia (Inch) |
Stage(s) |
| NF-E-80-26 |
81-132 |
83-141 |
2900 |
4 |
3 |
1 |
| NF-E-80-32 |
119-203 |
129-207 |
2900 |
4 |
3 |
1 |
Approved Fire Pump Ratings : RATED CAPACITY - 500 US GPM
| Pump Model |
UL Listed Pressure (PSI) |
FM Approved Pressure (PSI) |
Rated Speed (RPM) |
Suction Inlet Dia (Inch) |
Discharge Outlet Dia (Inch) |
Stage(s) |
| NF-E-80-26 |
130 |
79-139 |
2900 |
4 |
3 |
1 |
| NF-E-80-32 |
202 |
126-203 |
2900 |
4 |
3 |
1 |
Accessories
A complete and reliable fire protection system requires various
mechanical and hydraulic accessories. However, the requirements will
vary to fit the specific needs of each individual installation and the
standards of the Authorities having Jurisdiction. The accessories
recommended by the current edition of National Fire Protection
Association pamphlet No. 20 include: casing relief valve, suction and
discharge gauges, main relief valve, flow meter, concentric discharge
increaser, eccentric suction reducer, increasing discharge tee,over flow
cone, hose valve head, hose valve caps and chains, ball drip valve and
automatic air release valve (not required for end suction pumps).
NAFFO can provide a complete line of accessories depending on the
requirements of each individual installation. The chart given in the
next page illustrates the many accessories as well as drives that are
available from us. Refer to the product schedule of each project to find
out the accessories that are in our scope of our supply for any
particular project.
