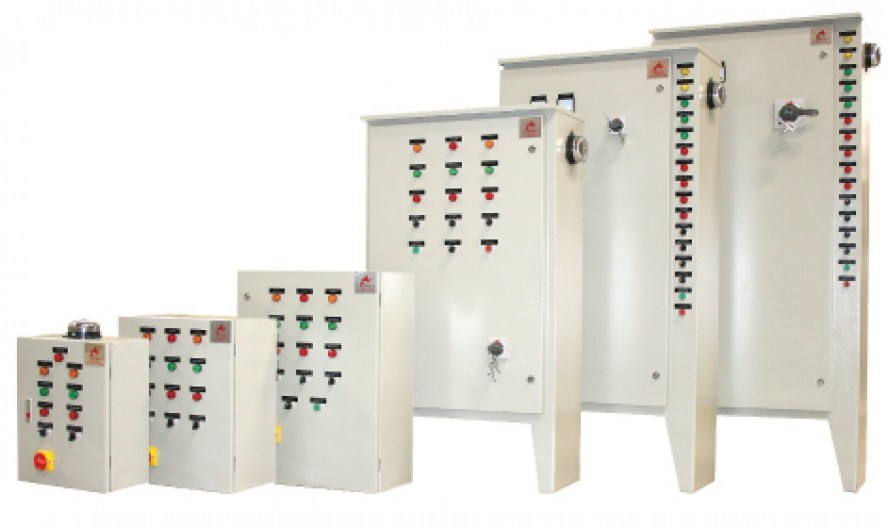

Fire Pump Controllers - Features
- All the components / accessories are of trusted brands
- Less maintenance cost and easily available spares
- Standard cable marking for easy maintenance
- Automatic or manual(test) operation
- Dry run protection
- DOL / star delta starter - (soft start upon special request)
- IP54 standard strong and reliable enclosures
- Remote alarm signals for various conditions (optional)
- Indications - Pump run, pump trip, power on, DC healthy and dry run
- Over crank protection circuit for diesel engine
- Different range of controllers depending on the capacity of motors (1.5Kw to 315 Kw)
- Auto battery charging system
- Multi cranking (optional)
- Motor protection relay
- Volt meter and ammeter (optional)
- 12V DC or 24V DC engine system
NAFFCO Fire Pump Controllers Models
| Model No. |
Ranges |
Enclosure Base |
| NF 01C |
1.5kW to 9kW with 12 volt Diesel Controller |
IP 54 - Base Mounted |
| NF 01A |
1.5kW to 9kW with 12 volt Diesel Controller |
IP 54 - Base Mounted without ELS |
| NF 01 C-S-D |
11kW to 30kW with 12 volt Diesel Controller |
IP 54 - Base / Floor mounted |
| NF 103 |
11kW to 22kW with 12 volt Diesel Controller |
IP 54 - Base / Floor mounted |
| NF 108 |
30kW to 315kW with 12/24 volt Diesel Controller |
IP 54 - Floor mounted Controller |
|
