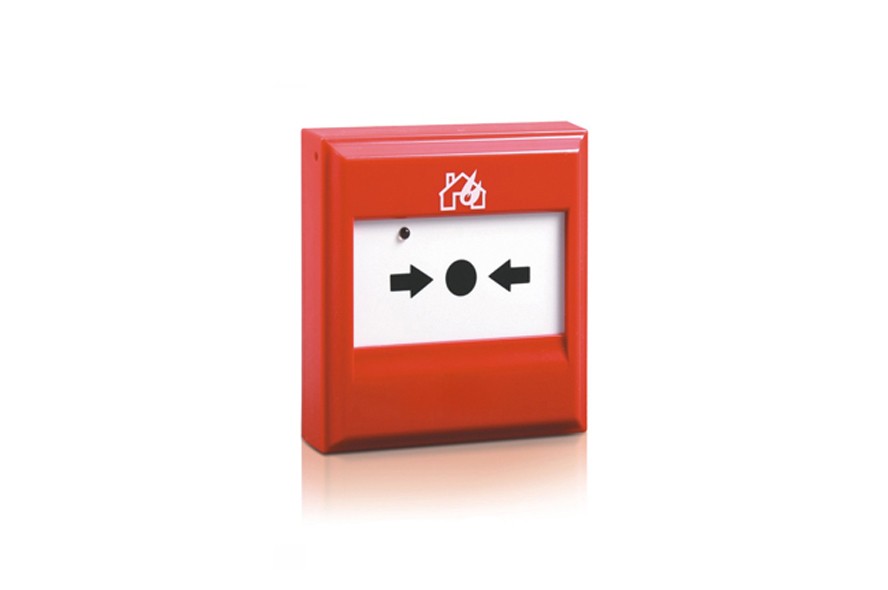

Manual Call Point

Features

  • Semi-flush or surface mount installation
  • Optional back-box for surface mount
  • Pleasing style design

Technical Specifications

  1. Protection Rating: IP55
  2. Operating Voltage: 24 VDC
  3. Operating Current: Standby Current:0; Alarm Current: 30mA
  4. Operating Environment: Temperature: -10~ +50’C; Relative Humidity: 95%
  5. Contact Resistance: 100mΩ
  6. Application: Indoor use
  7. Dimensions: 87 * 87 * 58mm, Surface Mount ; 87 * 87 * 23.5mm, Recess Mount
