SPECIFICATIONS:
Model |
NC2 |
NC5L |
NC3 |
NC10L |
NC5 |
NC6 |
Extinguisher capacity |
2kg |
5lbs |
3kg |
10lbs |
5kg |
6kg |
Fire rating |
34b |
34b |
34b |
55b |
55b |
70b |
Test pressure |
250bar |
Total weight |
8.1kg |
8.3kg |
11.0kg |
15.5kg |
17.0kg |
18.5kg |
Range of discharge |
4-5m |
4-5m |
4-5m |
4-5m |
4-5m |
4-5m |
Duration of discharge |
8sec |
10sec |
10sec |
12sec |
13sec |
15sec |
Height with valve |
63cm |
63cm |
64cm |
68.5cm |
73.5cm |
83.5cm |
Hose length with horn |
- |
- |
- |
75cm |
75cm |
75cm |
Operating temperature |
-20°c to + 60°c |
Description :

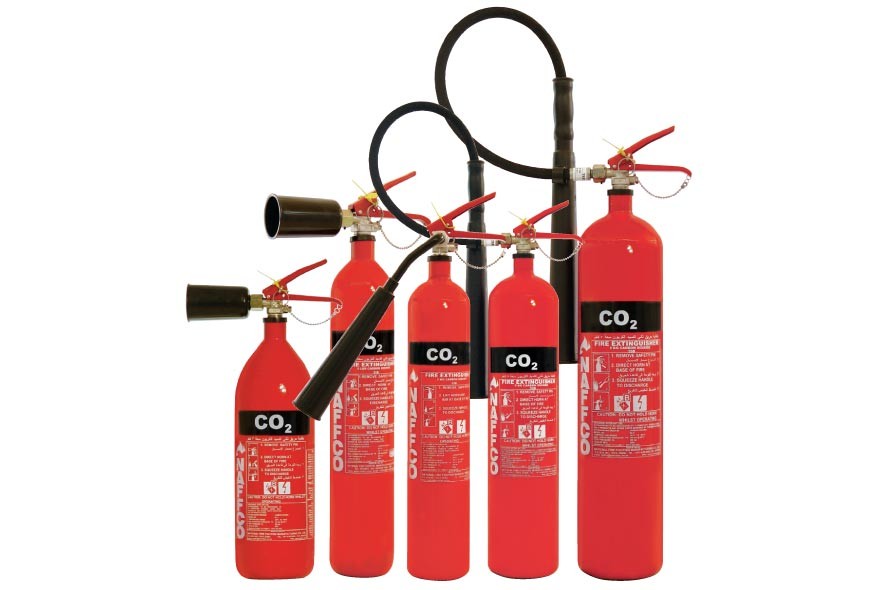

Carbon dioxide gives fast, safe and effective protection for fires
involving electrical equipment and flammable liquids. CO2 is recognised
for its non-damaging, highly effective performance and cleanliness.
They are generally suited for indoor use, making them ideal for today's
office environments.
Features :
- Simple operation and maintenance.
- Exceptionally effective on class b, c, & electrical fire.
- Portable and compact design.
- 56 bar working pressure at 20oc for maximum fire fighting performance.
- Cylinder deep drawn for higher tensile strength.
- Cylinder made of special steel to withstand high pressures, tested at 250 bars.
- High-grade brass head assembly ensures reliability and optimizes efficiency.
- Unbreakable rising pipe made of aluminium to ensure long lasting life.
- High gloss polyester powder painted uv stabilized after shot-blasting ensures corrosion resistance under extreme condition.
- Safety valve is fitted in each extinguisher for maximum safety.
- Discharge nozzle designed to produce a jet of extinguishing gas for fast fire suppression.
- Special hangers for wall mounting.
Applications :
- Flammable liquid storage areas
-
Food storage and processing plants
-
Airports
-
Telephone equipment rooms
-
Data processing centres
-
Engine rooms
-
Chemical plants and laboratories
-
Quench tanks
-
Petrochemical industries
-
Spray booths
-
Electrical control panels
-
Control rooms
|
