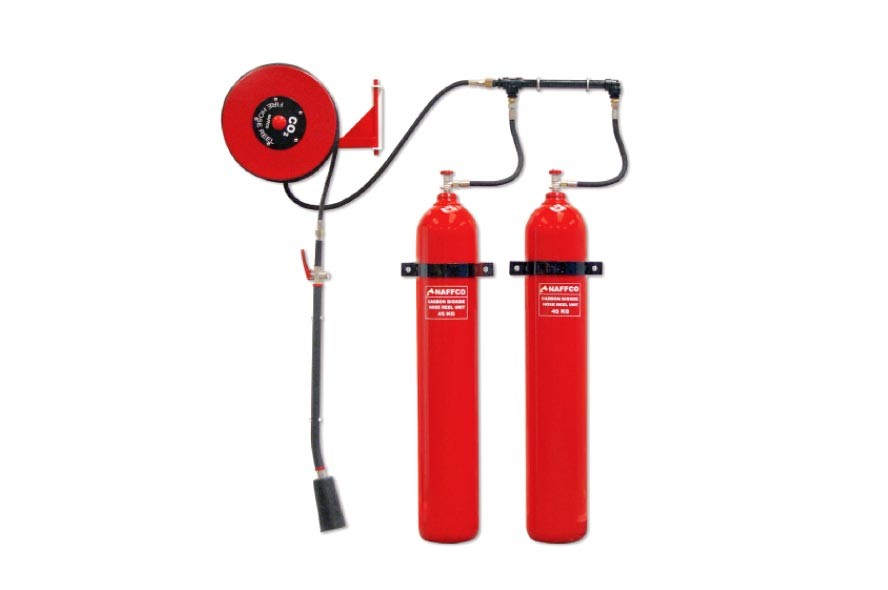

Co2 multiple cylinder with hose reel unit |
Specifications :
Model |
NHC30 |
NHC45 |
NHC90 |
Extinguisher capacity |
30Kg (1x30) |
45Kg (1x45) |
90Kg (2x45) |
Test pressure |
250Bar |
Total weight |
83Kg |
123Kg |
246Kg |
Range of discharge |
5-7m |
5-7m |
5-7m |
Hose length with horn |
20m |
20m |
20m |
Operating temperature |
-20°c to + 60°c |
Features :
- Cylinders are made of seamless carbon-manganese pipes which have high mechanical properties.
- Cylinder defined to withstand high pressure and tested at 250 bars.
- High-grade brass head valve ensures reliability and optimizes efficiency.
- High gloss polyester powder painted uv stabilized after shot-blasting ensures corrosion resistance under extreme condition.
- Safety valve is fitted in each cylinder for maximum safety.
- Long discharge nozzle and hose to protect the operator from heat, smoke and flames.
- Specially designed discharge hose and horn to increase the flexibility of operations.
- Discharge of agent is via delivery hoses mounted on a hose reel.
- Hose is available in standard length of 20 m. Other lengths of 30m, 45m and 50m are available upon request.
|
|
|
|
