NAFFCO fire pump set model NPS series

Introduction

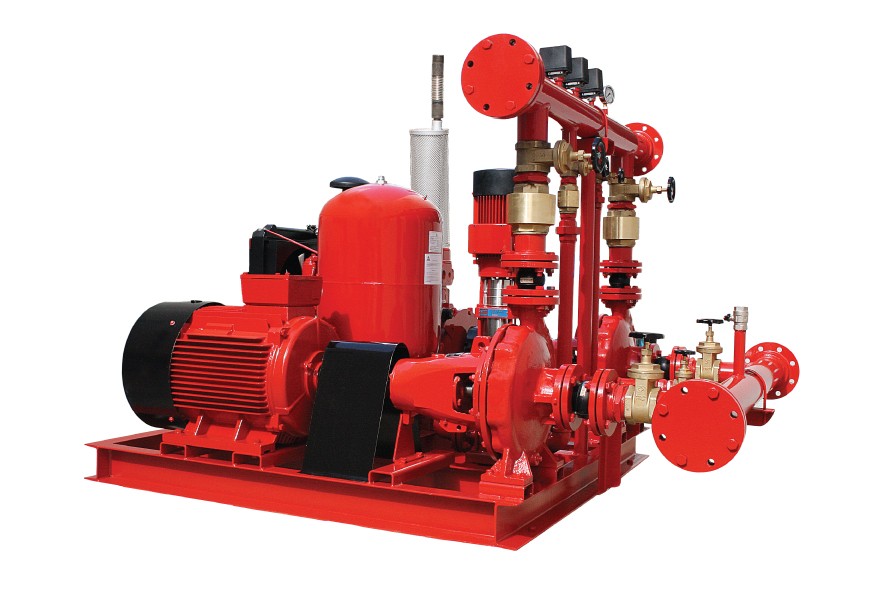

This package consists of one main pump coupled to electric motor, one stand by pump coupled to diesel engine, jockey pump, pressure vessel, controller (s) for manual or automatic operation of system and standard accessories mounted on base frame(s). The electric pump shall be End Suction or Single Stage Horizontal split case multi stage or Horizontal multi stage centrifugal depending on the System capacity and head requirements. Electric motor is squirrel cage industrial type and foot mounted suitable for 3 phase, with required hose power rating. The diesel engine is fixed on the base with anti-vibration rubber pads and the pump is directly coupled to a diesel engine through flexible coupling, According to the power output of the engine the electrical system can be either 12V or 24 DC.

The diesel engine consists of alternator, started motor, fuel system, lubricating system, exhaust system, etc. The jockey pump is vertically mounted multi stage pump coupled to TEFC, 3 phase motor. The controller shall be either common or individual (1 Electric + Diesel & Jockey) and is fabricated from mild steel and epoxy powder coated to red color. The enclosure is IP 54 rated and having all the required controls complying with the applicable standard (NFPA, LPCB, Local Jurisdiction Authority requirements etc.). The standard Fire Pump set will be compete with pressure switches, pressure gauge, suction & discharge manifolds with gate valves & non-return valves, flexible connectors, battery set for diesel engine etc. All are mounted on a strong common bas frame of mild steel and painted red. This Fire Pump set is designed to be installed with the following Fire Protection Systems.

The common controller is fabricated from mild steel and epoxy powder coated to red color. The enclosure id IP 54 rated and having all the required controls complying with the applicable standards (NFPA, LPCB Local Jurisdiction Authority requirements etc.). The standard Fire Pump set will be complete with pressure switches, pressure gauge, suction & discharge manifolds with gate valves & non-return valves, flexible connectors, battery set for diesel engine etc. All are mounted on a strong common bas frame of mild steel and painted red. This fire pump set is intended to be used with following Fire Protection System.

Description


  • Hose Reel System.
  • Combined System.
  • Deluge System (with modifications).
  • Stand Pipe System.
  • Water Spray Fixed.
  • Sprinkler System.



Specifications

Flow Rate Pressure
300 - 2500 US GPM 5 - 18 Bar


NPS Series Standard Models

Rating Pump Model
300 GPM @ 5 BAR NPS300/5-EDJ100-103
300 GPM @ 6 BAR NPS300/6-EDJ100-103
300 GPM @ 7 BAR NPS300/7-EDJ100-103
300 GPM @ 8 BAR NPS50/3-EDJ100-108
300 GPM @ 9 BAR NPS50/9-EDJ100-108
300 GPM @ 9 BAR NPS50/3-EDJ100-108
300 GPM @ 12 BAR NPS300/12-EDJ100-103
350 GPM @ 5 BAR NPS350/6-EDJ100-103
350 GPM @ 6 BAR NPS350/6-EDJ100-103
350 GPM @ 7 BAR NPS350/7-EDJ100-108
350 GPM @ 8 BAR NPS350/8-EDJ100-108
350 GPM @ 9 BAR NPS350/9-EDJ100-108
350 GPM @ 10 BAR NPS350/10-EDJ100-108
350 GPM @ 12 BAR NPS350/12-EDJ200-108
400 GPM @ 5 BAR NPS400/5-EDJ100-103
400 GPM @ 6 BAR NPS400/6-EDJ100-108
400 GPM @ 7 BAR NPS400/7-EDJ100-108
400 GPM @ 8 BAR NPS400/8-EDJ100-108
500 GPM @ 6 BAR NPS500/6-EDJ100-108
500 GPM @ 7 BAR NPS500/7-EDJ100-108
500 GPM @ 8 BAR NPS500/8-EDJ100-108
500 GPM @ 9 BAR NPS500/9-EDJ100-108
500 GPM @ 10 BAR NPS500/10-EDJ100-108
500 GPM @ 11 BAR NPS500/11-EDJ100-108
500 GPM @ 12 BAR NPS500/12-EDJ100-108
500 GPM @ 13 BAR NPS500/13-EDJ100-108
600 GPM @ 10 BAR NPS500/10-EDJ100-108
600 GPM @ 11 BAR NPS500/11-EDJ100-108
600 GPM @ 14 BAR NPS500/14-EDJ200-108
650 GPM @ 7 BAR NPS650/7-EDJ100-108
750 GPM @ 7 BAR NPS750/7-EDJ100-108
750 GPM @ 8 BAR NPS750/8-EDJ200-108
750 GPM @ 9 BAR NPS750/9-EDJ200-108
750 GPM @ 10 BAR NPS750/10-EDJ100-108
750 GPM @ 11 BAR NPS750/11-EDJ200-108
750 GPM @ 12 BAR NPS750/12-EDJ200-108
750 GPM @ 13 BAR NPS750/13-EDJ200-108
750 GPM @ 14 BAR NPS750/14-EDJ200-108
750 GPM @ 15 BAR NPS750/15-EDJ500-108
750 GPM @ 18 BAR NPS750/18-EDJ500-108
1000 GPM @ 8 BAR NPS1000/8-EDJ200-108
1000 GPM @ 9 BAR NPS1000/9-EDJ200-108
1000 GPM @ 10 BAR NPS1000/10-EDJ200-108
1000 GPM @ 12 BAR NPS1000/12-EDJ200-108
1000 GPM @ 7 BAR NPS1000/7-EDJ200-108
1000 GPM @ 10 BAR NPS1000/10-EDJ200-108
1250 GPM @ 7 BAR NPS1250/7-EDJ300-108
1250 GPM @ 10 BAR NPS1250/10-EDJ300-108
1500 GPM @ 10 BAR NPS1500/10-EDJ300-108
2200 GPM @ 10 BAR NPS2200/10-EDJ300-108
2500 GPM @ 10 BAR NPS2500/10-EDJ500-108
2500 GPM @ 12 BAR NPS2500/12-EDJ500-108
