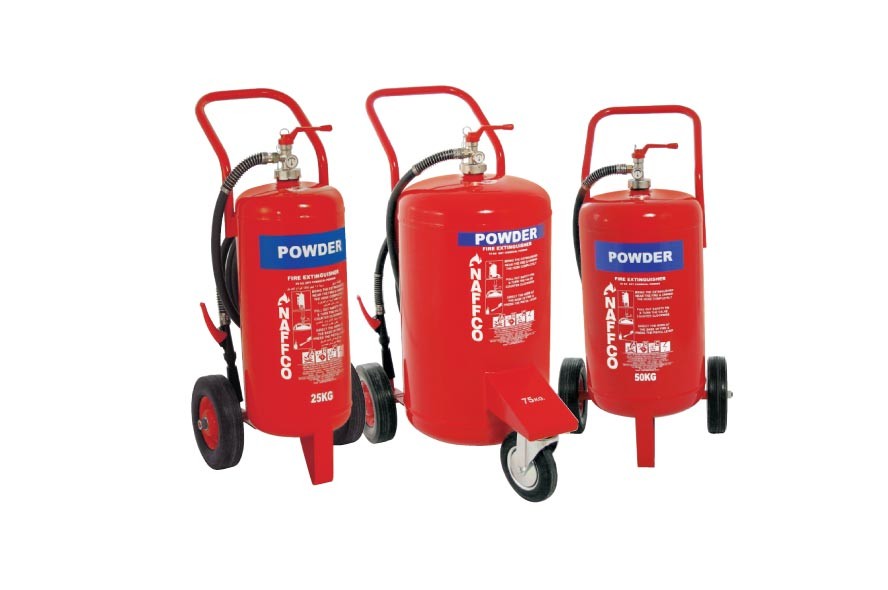

| Mobile fire extinguishers with Stored Pressure Type |
SPECIFICATIONS
| Model |
NTDP25 |
NTDP30 |
NTDP50 |
NTDP75 |
NTDP100 |
NTDP150 |
| Extinguisher capacity |
25kg |
30kg |
50kg |
75kg |
100kg |
150kg |
| Fire rating |
34A IB |
34A IB |
34A IIB |
34A IIB |
34A IIIB |
43A IVB |
| Working pressure |
15bar |
| Test pressure |
30bar |
| Total weight |
51kg |
58.5kg |
93kg |
134kg |
165kg |
239kg |
| Range of discharge |
7-9m |
7-9m |
7-9m |
7-9m |
8-9m |
8-9m |
| Duration of discharge |
25-30 sec |
30-35 sec |
40-45 sec |
65-70 sec |
85-90 sec |
135-140 sec |
| Operating temperature |
-20°c to +60°c |
| Hose length |
3m |
3m |
5m |
7m |
7m |
7m |
Features :
- Ready for instant use and simple to operate.
- Fully controlled and easy operation by rust free brass valve.
- Cart and cylinder are made of rugged steel and welded to meet extreme use conditions.
- Easily transportable.
- Highly visible pressure-indicating gauge.
- Electrostatic powder painting after shot blasting ensures maximum corrosion resistance.
Options :
- For three wheels, suffix "S"
- Other hose lengths are available upon request
- Special NTDPS-CD(X) series with metal dry powder for Class D fire of Magnesium, Sodium,etc.
- Special NTDPS(X) series with Sodium Bicarbonate for Class B & C fires.
- Special NTDPS-M(X) Series with monnex powder for Class B & C fires.
- Special NTDPK-(X) Series with stop fire K for Class B & C fires.
- Special PVC internal coating.
|
|
|
|
