Home Page » Fire Alarm System » Addressable Zone Monitor Unit

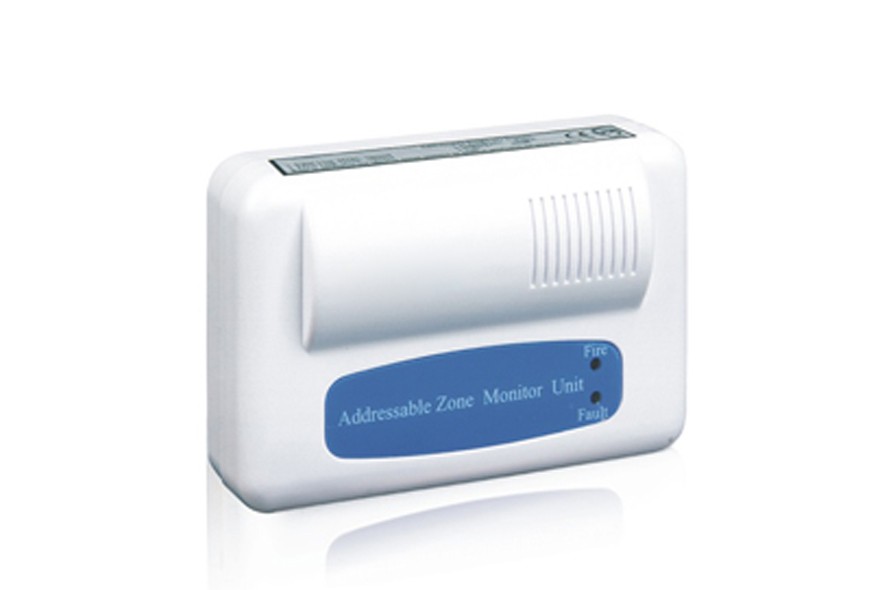

Addressable Zone Monitor Unit

Features

  • Interface with conventional fire detection equipment/panels, etc.
  • Can connect up to 15 detectors with Active EOL or up to 25 detectors with Resistor EOL
  • Ideal for integrating Sprinkler Zone Valve and Flow Switches
  • Electronically Addressable

Technical Specifications

  1. Operating Voltage: 24 VDC Loop, 24 VDC Power Supply
  2. Operating Current(loop): Standby Current: 0.5mA ; Action Current: 5mA
  3. Capability: 15 conventional detectors
  4. End of Line: 4.7kΩ resistor or AEOL
  5. Action Resistance: 470 ~ 680 Ω
  6. Operating Environment: Temperature : -10~+50°C ; Relative Humidity : 93%
  7. Dimensions: 120mm * 80mm * 43mm
