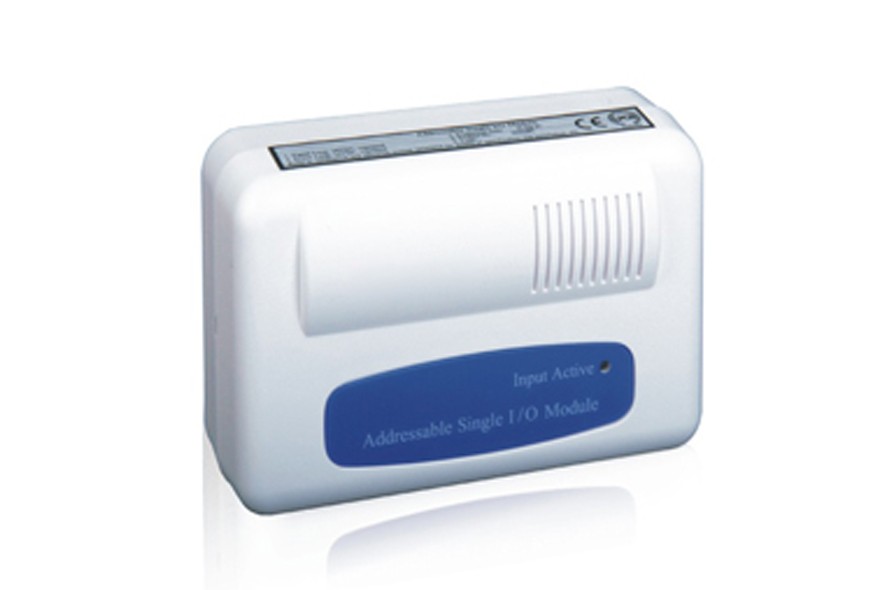

Addressable Single I/O Module |
Features
- Addressable I/O with 24V / 3Amp relay output contacts
- Input can be configured as NO / NC or self confirmation of output (Programmable via D-APP handheld programmer)
- Two part plug-in construction with base mounted termination allows easy installation and connection
- Intelligent interface can be addressed and plugged into the base during the time of commissioning
- Electronically addressable
Technical Specifications
- Operating Voltage: 24 VDC Loop, 24 VDC Power Supply
- Operating Current(loop): Standby Current: 1mA ; Action Current: 3mA
- Wiring: Non-polarized 2-core loop; Non-polarized 2-core for 24 VDC power supply
- Operating Environment: Temperature : -10~+50°C ; Relative Humidity : 93%
- Dimensions: 120mm * 80mm * 39mm
|
|
|
|
