Introduction
The fire pumps are the heart of any liquid based Fire Fighting System
and we at NAFFCO ensures the proper functioning of this heat by the
excellent design, manufacturing & installation. We use the expertise
of our well experienced engineers and designs each pump sets to suit
the specific Fire Fighting System requirements, site conditions and the
relevant standards. The quality of design is maintained throughout the
process of manufacturing and our customers get 100% reliable pump set.
Each pumps sets are being tested for the performance as per the designed
system requirements before dispatching from the factory. Being a UL
registered firm, we implements stringent quality measures throughout the
production which enables us to achieve the desired performance
standards conforming to different regulations of NFPA, LPCB and Local
Jurisdiction Authorities. The ISO 9001:2000 certification by LPCB
testifies to these facts. The pumps delivered by us are covered by a
standard warranty of one year. Currently around 20,000 NAFFCO packaged
Fire Pump Set are working worldwide in Government buildings, Warehouses,
High rise Building, Factories, Residential buildings, etc. to protect
the precious life and properties.

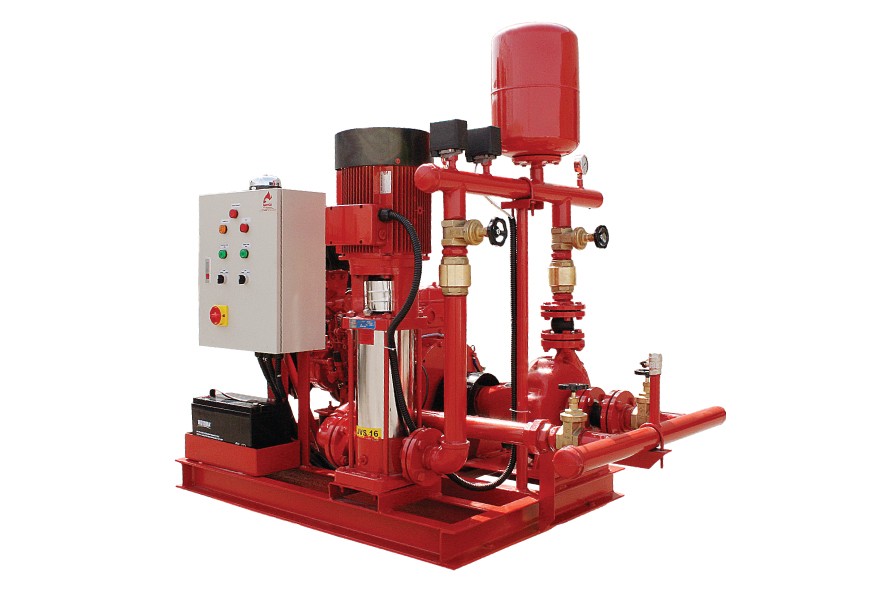

This model consist of one eclectic motor driven Fire Pump, diesel engine
driver Fire Pump, one common Fire Pump controller, pressure vessel and
standard accessories mounted on base frame. The electric pump shall be
vertical multistage type close coupled to electric motor. The electric
motor is squirrel cage industrial type, suitable for 3 phase, with
required horse power rating. The diesel engine is fixed on the base with
anti-vibration rubber pads and the pump is close (up to 50gpm @ 5 bar)/
flexibly (above 50 gpm @ 5 bar) coupled to diesel engine. According to
the power output of the engine the electrical system can be either 12V
or 24V DC. The diesel engine consists of starter motor, fuel system,
lubricating system, exhaust system etc
The common controller is fabricated from mild steel and epoxy powder
coated to red color. The enclosure id IP 54 rated and having all the
required controls complying with the applicable standards (NFPA, LPCB
Local Jurisdiction Authority requirements etc.). The standard Fire Pump
set will be complete with pressure switches, pressure gauge, suction
& discharge manifolds with gate valves & non-return valves,
flexible connectors, battery set for diesel engine etc. All are mounted
on a strong common bas frame of mild steel and painted red. This fire
pump set is intended to be used with following Fire Protection System.
Data of Performance Range for Fire Pump Set Model NPH Series
| Flow Rate |
Pressure |
| 30 - 200 US GPM |
3 - 10 Bar |
| Note: Higher ranges are available upon request |
NPH Series Standard Models
| Rating |
Pump Model |
| 30 GPM @ 3 BAR |
NPH30/3-ED24-01C |
| 35 GPM @ 5 BAR |
NPH35/5-ED24-01C |
| 50 GPM @ 5 BAR |
NPH50/3-ED24-01C |
| 50 GPM @ 6 BAR |
NPH50/6-ED24-01C |
| 50 GPM @ 7 BAR |
NPH50/7-ED24-01C |
| 50 GPM @ 8 BAR |
NPH50/8-ED24-01C |
| 50 GPM @ 9 BAR |
NPH50/9-ED24-01C |
| 60 GPM @ 6 BAR |
NPH50/6-ED24-01C |
| 70 GPM @ 6 BAR |
NPH70/6-EDJ100-01C-S-D |
| 75 GPM @ 6 BAR |
NPH75/6-ED24-01C |
| 80 GPM @ 10 BAR |
NPH80/10-ED100-103 |
| 100 GPM @ 5 BAR |
NPH100/5-ED100-01C-S-D |
| 100 GPM @ 5 BAR |
NPH100/5-ED100-103 |
| 100 GPM @ 6 BAR |
NPH100/6-ED100-01C-S-D |
| 100 GPM @ 6 BAR |
NPH100/6-EDJ100-103 |
| 100 GPM @ 7 BAR |
NPH100/7-ED100-01C-S-D |
| 100 GPM @ 7 BAR |
NPH100/7-EDJ100-103 |
| 100 GPM @ 8 BAR |
NPH100/8-ED100-01C-S-D |
| 100 GPM @ 8 BAR |
NPH100/8-ED100-103 |
| 100 GPM @ 9 BAR |
NPH100/9-EDJ100-103 |
| 100 GPM @ 10 BAR |
NPH100/10-EDJ100-103 |
| 125 GPM @ 7 BAR |
NPH125/7-EDJ50-103 |
| 150 GPM @ 4 BAR |
NPH150/4-EDJ100-103 |
| 150 GPM @ 5 BAR |
NPH150/5-EDJ100-103 |
| 150 GPM @ 6 BAR |
NPH150/6-EDJ100-103 |
| 150 GPM @ 6 BAR |
NPH150/6-ED100-01C-S-D |
| 150 GPM @ 7 BAR |
NPH150/7-EDJ100-103 |
| 150 GPM @ 8 BAR |
NPH150/8-EDJ100-103 |
| 175 GPM @ 8 BAR |
NPH175/8-EDJ100-103 |
| 200 GPM @ 5 BAR |
NPH200/5-EDJ100-103 |
| 200 GPM @ 6 BAR |
NPH200/6-EDJ100-103 |
| 200 GPM @ 7 BAR |
NPH200/7-EDJ100-103 |
| 200 GPM @ 8 BAR |
NPH200/8-EDJ100-103 |
| 200 GPM @ 9 BAR |
NPH200/9-EDJ100-108 |
| 250 GPM @ 4 BAR |
NPH250/4-EDJ100-103 |
| 250 GPM @ 5 BAR |
NPH250/5-EDJ100-103 |
| 250 GPM @ 6 BAR |
NPH250/6-EDJ100-103 |
| 250 GPM @ 7 BAR |
NPH250/7-EDJ100-103 |
| 250 GPM @ 8 BAR |
NPH250/8-EDJ100-103 |
| Note: Fire Pump sets are available for other duty points and higher ranges also. Please contact factory. |
|
