NAFFCO Fire Pump set model NPE Series

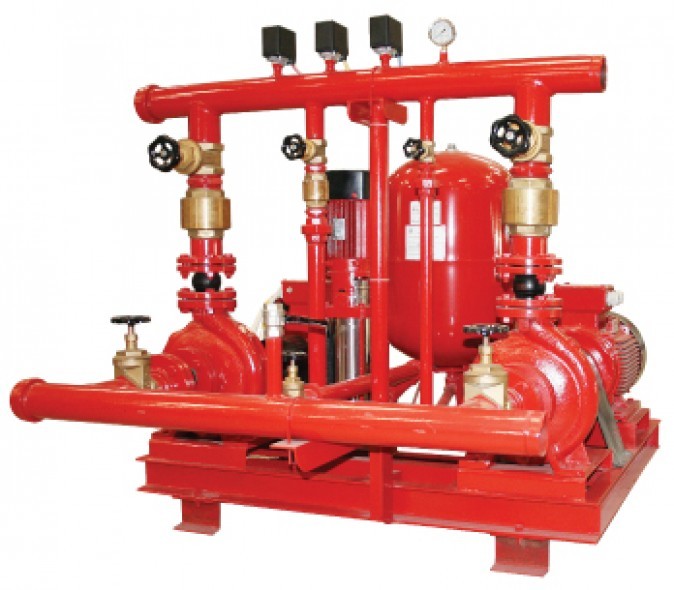

Fire Pump Set NPE Series

This package consists of 2 electric motor driven fire pumps, (one is duty and another one is standby), jockey pump, pressure vessel, suction and discharge manifold, discharge pressure gauge, pressure switches, common controller for manual or auto operation of the system, standard accessories and base frame(s). The fire pumps shall be end suction or horizontal split case or horizontal multistage type. The electric motor is squirrel cage induction type and foot mounted suitable for 3 phase supply. Jockey pump shall be vertical multistage type close coupled to electric motor.

Description

  • Electric Pump Set.
  • Jocket Pump
  • Gate Valve
  • Flexible Coupling
  • Water Spray Fixed.
  • Non Return Valve
  • Ball Valve
  • Suction Manifold
  • Delivery Manifold
  • Pressure Gauge
  • Pressure Switch
  • Pressure Vessel
  • Union

Specifications

Flow Rate Pressure
30 - 2500 US GPM 3 - 18 Bar
 Note: Higher ranges are available upon request
