Features

• Non-Breaking re-settable glass (via special key)
• Two part plug-in construction with base mounted terminations allows easy installation and connection
• Compatible with latest EN Standards

Technical Specifications

Operating Voltage: 24 VDC Loop
Operating Current :

• Standby Current 0mA
• Alarm Current 30mA

N/O Output Contact : Rating 60 VDC ,0.1 A Contact Resistance 100mΩ
Operating Environment:

• Temperature:  -10~+50°C

Relative humidity : 95 % Dimensions: 95mm x 98mm x  40mm

Features / BG-C441

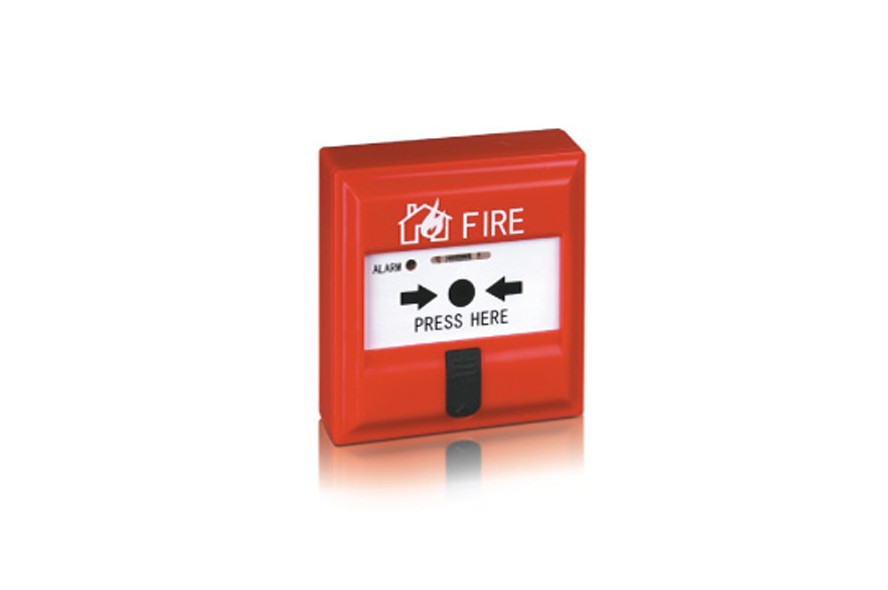

• Manual call point(MCP) with re-settable (non breakable)glass
• Additional volt free contacts for local interfacing (i.e, PIZ, camera preset)
• Two parts plug-in construction with base maintained termination allows for easy installation and connection
• Suitable for semi-flush and surface mount installation

Technical Specifications

Operating Voltage: 24 VDC Loop
Operating Current :

• Standby Current 0mA
• Alarm Current 30mA

N/O Output Contact : Rating 60 VDC ,0.1 A Contact Resistance 100mΩ
Operating Environment:

• Temperature:  -10~+50°C

Relative humidity : 95 % Dimensions: 90mm x 122mm x  48.5mm
