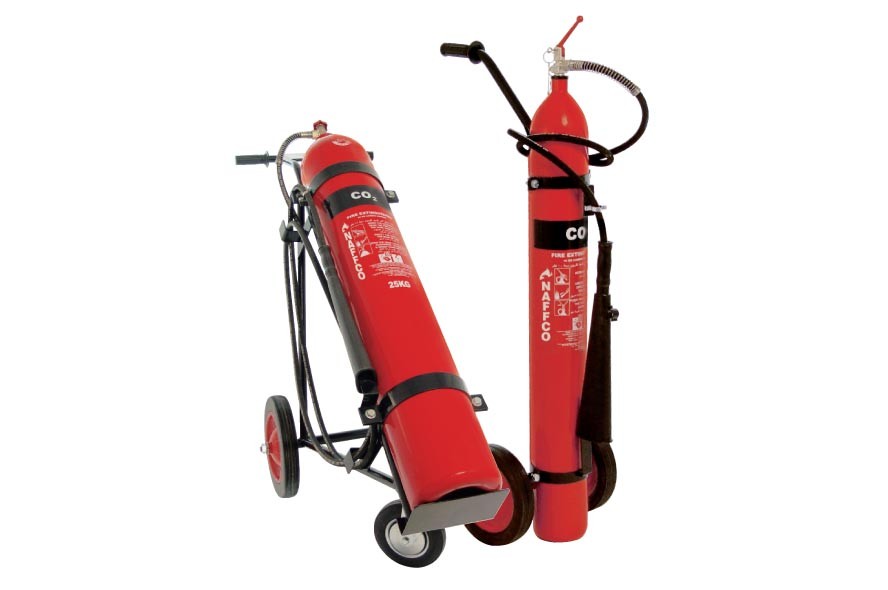

Mobile Carbon Dioxide Extinguishers

Single cylinder :

Model NTC10 NTC12 NTC30 NTC45
Extinguisher capacity  10Kg    12Kg    30Kg    45Kg
Fire rating  70B    70B    113B    144B
Test pressure    250Bar
Total weight    43Kg    50Kg    83Kg    125Kg
Range of discharge    4-5m    4-5m    4-5m    4-5m
Duration of discharge    25Sec    30Sec    70Sec    100Sec
Height with valve    125cm    149cm    142cm    163cm
Hose length with horn    2m    2m    5m    7m
Operating temperature    -20°c to + 60°c

Double cylinder :

Model NTC20 NTC60 NTC90
Extinguisher capacity   20Kg (2x10)     60Kg (2x30)     90Kg (2x45)
Fire rating   89b     144b     144b
Test pressure     250Bar
Total weight     80Kg     200Kg     280Kg
Range of discharge     4-5m     4-5m     4-5m
Duration of discharge     50Sec     150Sec     220Sec
Height with valve     125cm     142cm     163cm
Hose length with horn     5m     7m     7m
Operating temperature     -20°c to + 60°c

Options :

Carbon dioxide trolley with special discharge hose and horn to use in high reach hazardous area is also available.

Special nozzle for aircraft protection is available upon request.

Features :

  • Cylinders are made of seamless carbon-manganese pipes which have high mechanical properties.
  • Cylinder designed to withstand high pressure and tested at 250 bar.
  • High-grade brass head valve ensures reliability and optimizes efficiency.
  • Head valves are either lever operated or rotary operated.
  • Unbreakable rising pipe made of aluminium to ensure long lasting life.
  • High gloss polyester powder painted uv stabilized after shot-blasting ensures corrosion resistance under extreme condition.
  • Safety valve is fitted in each extinguisher for maximum safety.
  • Discharge nozzle designed to produce a jet of extinguishing gas.

Applications :

  • Flammable liquid storage areas

  • Food storage and processing plants

  • Airports

  • Telephone equipment rooms

  • Data processing centres

  • Engine rooms

  • Chemical plants and laboratories

  • Quench tanks

  • Petrochemical industries

  • Spray booths

  • Electrical control panels

  • Control rooms
