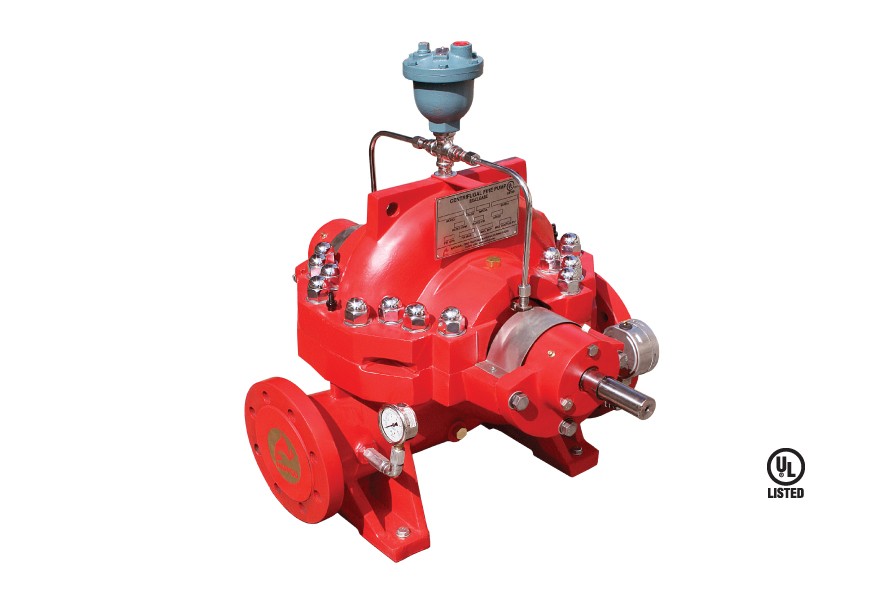

Horizontal Split Case Pumps

Fire Fighting Pumps

NAFFCO’s new range of UL listed and FM approved fire pumps provide you a reliable solution for your fire fighting pump needs by combining the stringent quality measures of UL/FM and NFPA standards with our proven experience in the fire protection field. We can offer you a complete package of service starting from engineering assistance to field start-up and periodic maintenance. Each pump sets are tested in our factory, prior to dispatch, as per UL/FM and NFPA standards. These pumps are covered by a warranty of one year subject to standard terms and conditions.


Features
  • Complete unit responsibility.
  • Complete in-house fabrication capabilities.
  • Hydrostatic testing facilities.
  • Operation run test as per NFPA and UL standards.
  • Horizontal Split casing pumps for capacities of 750 US GPM and 1000 US GPM
  • Drivers: Electric motor drive or diesel engine drive.
  • Electrical testing capabilities for motors and controllers as per NFPA standards.
  • Capable to supply additional accessories wherever required.

Approved Fire Pump Ratings : RATED CAPACITY - 750 US GPM

Pump Model UL Listed Pressure (PSI) FM Approved Pressure (PSI) Rated Speed (RPM) Suction Inlet Dia (Inch) Discharge Outlet Dia (Inch) Stage(s)
NF-S-125-80 236 236 2900 5 3 1
NF-S-150-100 112-213 108-216 2900 6 4 1
NF-S-150-100-375 226-276 227-280 2900 6 4 1

Approved Fire Pump Ratings : RATED CAPACITY - 1000 US GPM

Pump Model UL Listed Pressure (PSI) FM Approved Pressure (PSI) Rated Speed (RPM) Suction Inlet Dia (Inch) Discharge Outlet Dia (Inch) Stage(s)
NF-S-150-100 101-208 101-215 2900 6 4 1
NF-S-150-100-375 219-273 215-273 2900 6 4 1
NF-S-200-125 143-267 143-252 2900 8 5 1

Approved Fire Pump Ratings : RATED CAPACITY - 1250 US GPM

Pump Model UL Listed Pressure (PSI) FM Approved Pressure (PSI) Rated Speed (RPM) Suction Inlet Dia (Inch) Discharge Outlet Dia (Inch) Stage(s)
NF-S-200-125 137-263 134-250 2900 8 5 1

Approved Fire Pump Ratings : RATED CAPACITY - 1500 US GPM

Pump Model UL Listed Pressure (PSI) FM Approved Pressure (PSI) Rated Speed (RPM) Suction Inlet Dia (Inch) Discharge Outlet Dia (Inch) Stage(s)
NF-S-200-125 130-256 121-242 2900 8 5 1

PUMP CASING :
This casing is axially split, which permits removal of the complete rotor without moving either piping or motor.
Pumps generating high heads have double volutes to reduce radial forces, ensuring minimal shaft deflection and low bearing loads. Replaceable wearrings protect the casing at the impeller running clearances.


IMPELLER :
The closed impellers have double curved vanes. The double suction design gives practically zero axial forces. Each impeller is statically and dynamically balanced according to ISO 1940 - 1 standard.


BEARINGS :
On both sides grease lubricated deep groove ball bearings, sealed for life.


SHAFT SEAL :
Soft-packed stuffing box. Cooling lines are provided for additional cooling of the graphite impregnated type gland packing.
