Features

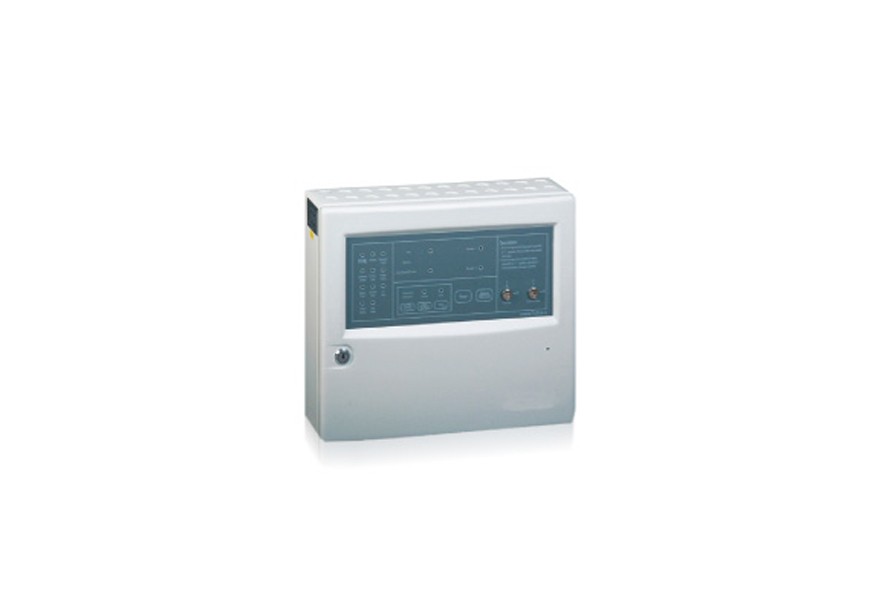

• 1/2/4/8/16 zone conventional fire alarm panels
• Both End of Line Resister and Active End of Line can be used
• Zone isolate control
• Key-control evacuation over-ride
• Repeater output available
• Fire alarm output for remote control
• Active EOL enables multiple alarm reporting from same zone
• Active EOL max 15 fire detectors and infinite manual buttons each zone
• Resistor EOL up to 25 detectors and infinite manual buttons each zone
• Optional relay output board

Technical Specifications

1. Power Supply: 230VAC 50/60 Hz
2. Operating Environment: Temperature : 0~+40°C ; Relative Humidity : 95%
3. Dimensions: 210mm * 297mm * 90mm
