Description

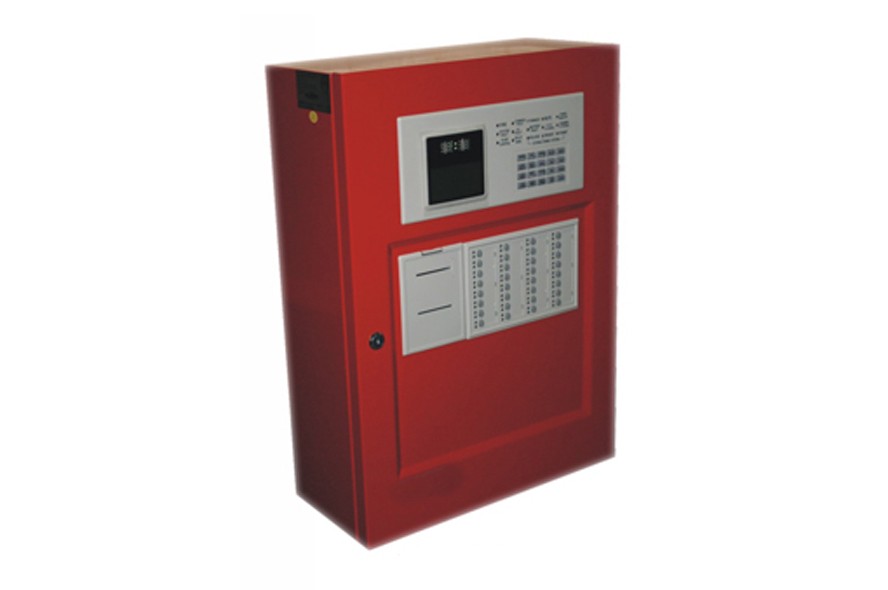

Single loop addressable fire detection panel packed with features not
usually associated with smaller systems, providing a high quality
solution at an exceptionally good value.
Features P-A-300
- Loop capacity 235 intelligent devices
- 30 logical configurable zones
- Graphical LCD Display
- Zone indication and manual intervention panel
- Net-workable with all Shield Intelligent fire panels
- Programmable from PC
- Built-in RS485 repeater output (Maximum 10 repeaters)
- Optional GMC system
- Optional Fireman's Control Panel
- Optional Panel Printer
- Advanced user friendly programming software including "Fuzzy Logic"
Technical Specifications
- Power Supply: 230 VAC 50/60Hz
- Operating Environment: Temperature: 0~40°C ; Relative Humidity: 95%
- Dimensions: 400mm * 560mm * 182mm
|
