Compressed Air Foam System

Compressed Air Foam System in collaboration with MicroCAFS - Germany

NAFFCO CAFS is a general Fire fighting system for all type of fire, saves resources, reduces damage to the environment and offers other benefits for the users. CAFS Core System substitute the future for effective Fire Fighting.


Engineered and developed with the background of practical experience the focus was laid on the overall functionality including easy handling and reliable quality of foam.



Two different type of foam - wet and dry, easily to be changed during operation. Extremely long duration.

Excellent extinguishing capability when in use for highly flammable material,i.e. burning plastics, rubber.

Benefits of Compressed Air Foam System

  • Special high energy foam, which has 20 times effective wetting ability than plain water.
  • Long discharge range than conventional foams
  • Good adhesion to vertical surfaces
  • Good adhesion to horizontal and inclined surfaces to isolate and insulate the fire source.
  • Reduce heat radiation and propagation that in turn prevents Fire spread to near by source.
  • Super cools the environment providing a well protected area.
  • Highest volume of foam possible.
  • Reduces property damage with dry foam.Suitable to isolate HAZMAT (Hazardous Material) spills and leakages.

Specifications

Model No   NFCAF 10G NFCAF 20G NFCAF 30G
Capacity (gallon)   10 G 20 G 30 G
Working Pressure   8 bar 8 bar 8 bar
Test Pressure   30 bar 30 bar 30 bar
Discharge Duration Dry 1.7 Minutes 3.5 Minutes 5 Minutes
Wet 1 Minutes 2.5 Minutes 4Minutes
Flow range(Mtrs)   15 15 15
Foam discharge

Wet Type & Dry Type

Compressed Air Cylinder Pressure

150 / 200 bar

Compressed Air Foam System in collaboration with MicroCAFS - Germany

NAFFCO CAF system confirms to NFPA 11 for compressed air foam systems.


Special Class A foam is used for effective extinguishing capability.

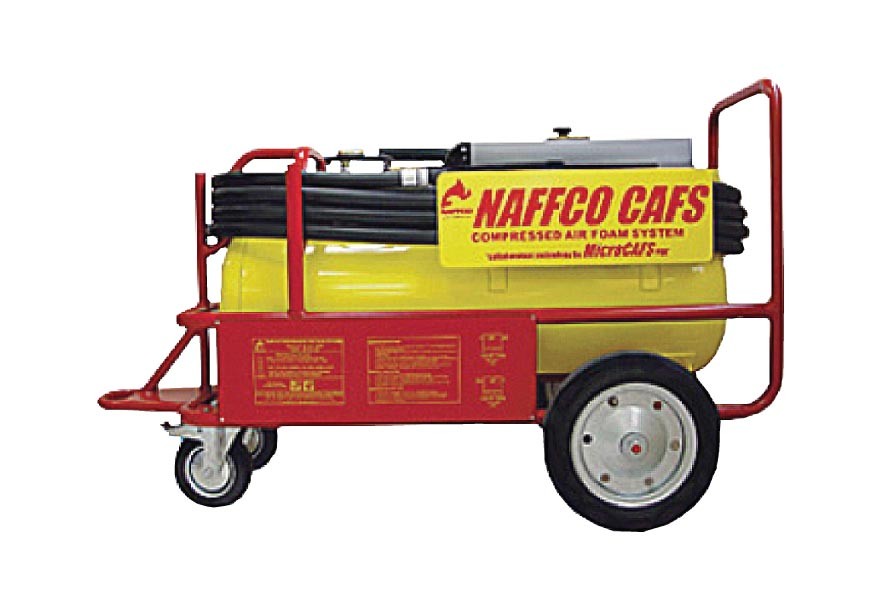

Foam tanks are designed and manufactured as per European Directive 97/23/EC using Stainless steel 316L grade sheets. Foam tanks are Electrostatic powder painted and mounted on rigid constructed easily maneuvered trolley.


Special discharge gun are provided for capacity up to 30 Gallons and Turbo jet nozzles are provided for capacities above this capacity.



Wet & Dry foam discharge option selector is provided for models up to 30 Gallons and for models above this Dry discharge foam is provided as optional.

Specifications

Model No NFCAF 60G NFCAF 100G
Capacity (gallon) 60 G 100 G
Working Pressure 8 bar 8 bar
Test Pressure 30 bar 30 bar
Discharge Duration(in minutes) 3 5
Flow range(Mtrs) 25 25
Nozzle type Turbojet nozzle 1-1/2” Size*
Foam discharge Wet Type**
Compressed Air Cylinder Pressure 150 / 200 bar

Features

  • Immediately isolate the surrounding Fire, protects transferring the fire to other places & prevent ignition of Fire further.
  • Saving time and water for Civil Defense Personnel while they fight with Fire.
  • Reducing damage to structures, happens due to water.
  • Allows Fire Fighters a better safety distance from Fire.
  • Light hose lines for less stress for Fire-Fighters.
  • Less environmental damage.
  • Foamed areas signal a cooled surface.
  • Less water runoff carrying pollutants.
  • Reduced smoke emissions.
  • Less pressure needed due to lack of friction loss.

Specifications

Model No  NFCAF 200G    NFCAF 300G
Capacity (gallon)  200G    300 G    500 G
Working Pressure  8 bar    8 bar    8 bar
Test Pressure  30 bar    30 bar    30 bar
Discharge Duration(in minutes)  5    8    12
Flow range(Mtrs)  25    25    25
Nozzle type  Turbojet nozzle 1-1/2” Size*
Foam discharge  Wet Type**
Compressed Air Cylinder Pressure  150 / 200 bar
