Double jacket hose

Fire Fighting Hose (3 layers) - Double Jacket

Model No: Diameter(inch) Minimum
Working pressure (Bar)
Minimum
Burst pressure (Bar)
Masnufacturing
Standard
D Syntex W 1.5 / 2 / 2.5 21 60 DIN / BS
Standards
D Syntex P 1.5 / 2 / 2.5 21 60

Applications:

  • Municipal fire brigades, Industrial fire Brigades.
  • The hose have better abrasion resistance than single jacket hoses and higher service test pressure.

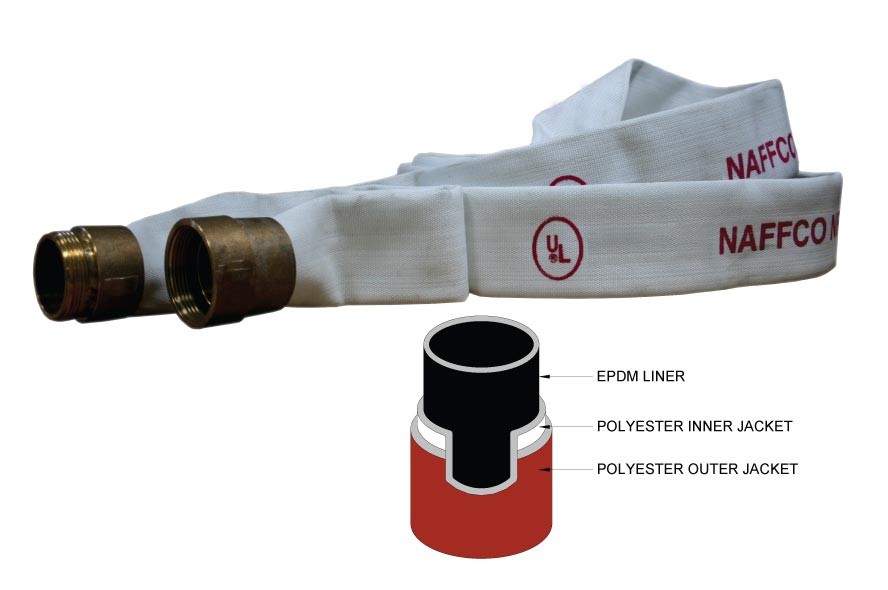

Construction:

Double jacket, the wrap yarn shall consist of polyester staple, the filler shall be constructed of high strength, low elongation, filament polyester. The liner shall be a single ply extruded of EPDM rubber and adhere to the to prevent delamination. Hoses are available with polymer impregnation that provides additional abrasion resistance.

Coupling Available:

NST / NH threaded. Storz & instantaneous coupling or other type available upon request.
