| Rack & reel hose |

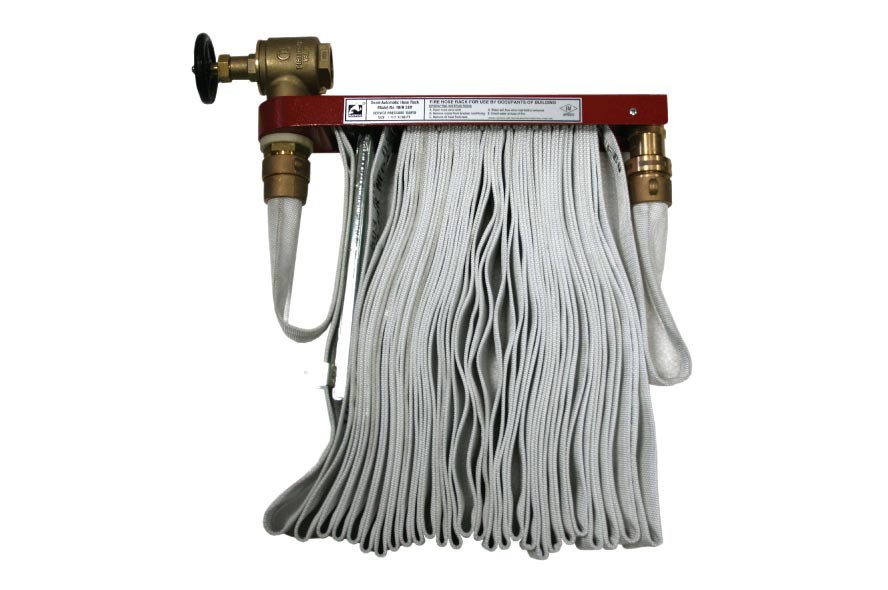

Fire hose rack :
- NAFFCO Fire hose racks are designed for use in controlling
incipient fire by building occupant use and conform s to NFPA 14
standards for CLASS II service. The Fire Hose Racks are manufactured to
comply FM standard Class 2141.
Specifications :
| Size |
1-1/2”x30 MTR |
| Model |
NHR 38V |
| Fire Hose Type |
Single jacket, Light weight Thermoplastic lining with high tenacity filament polyester yarn, UL listed |
| Size & Color |
1.5”x30MTR., White |
| Service Pressure |
150 PSI |
| Proof Pressure |
500 PSI |
| Burst Pressure |
750 PSI |
| Couplings: |
|
| Type |
1-1/2” NH Female Threaded
Coupling, Brass |
| Angle Valve* |
|
| Working Pressure |
300 PSI |
| Test Pressure |
600 PSI |
| Nozzle |
|
| Inlet Size |
1.5” Female NST Threaded |
Discharge rate
(in full spray pattern) |
130 ± 5GPM@100 PSI |
| * Pressure reducing Type available upon request |
Features :
- Hose rack frame material made of Stainless Steel Gr.304.
- Provides an immediate water source for Fire suppression.
- Easy operational for single person.
- Hose rack is designed to hold the hose with movable pins for easy & quick operation at the time of Emergency.
- An automatic release mechanism allows water to flow through the hose after removal of the hose and nozzle.
- Standard assemblies include:
• Angle Valve or pressure reducing type valve (UL/FM approval) • Hose rack frame • Hose rack nipple
• Hose coupling • Fire Hose - 30 mtr. • Fog nozzle. - Hose rack frames are RED (RAL 3000) Polyester powder coated, oven baked.
Standards :
- Fire hose manufactured to this specification shall meet &
exceed all performance requirements of NFPA 1961, Underwriter’s
Laboratories.
- The hose shall be UL approved and can be labeled upon request in the size specified **
|
|
|
|
