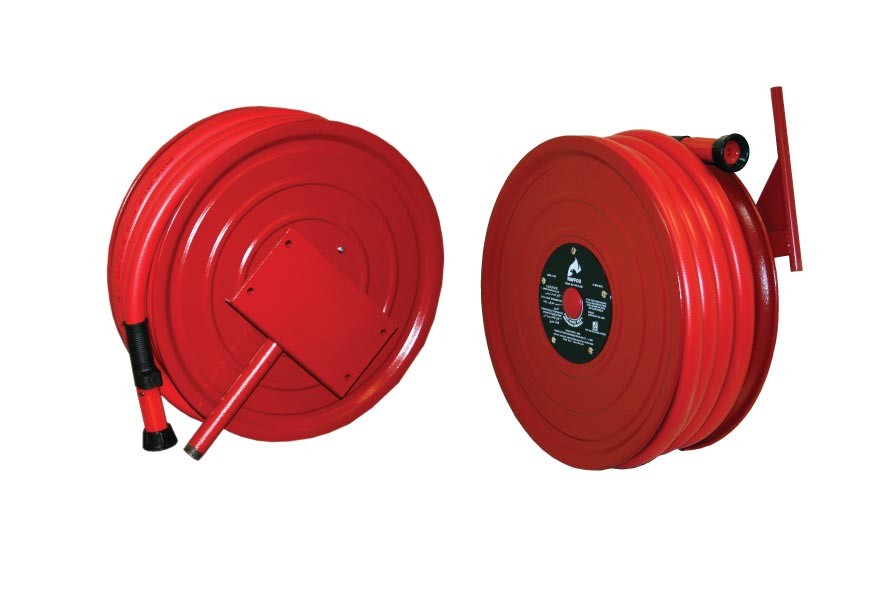

Fire Hose Reel

Design features :

  • Manufactured as per BS EN671-1 standard.
  • Hose reel discs are manufactured using 1.2mm electro galvanised steel sheets and has ribs that gave extra strength, which in turn avoid twisting.
  • Hose reel drum painted with red powder coating or chrome in stainless steel finish are available upon request
  • Plastic nozzle supplied has jet/spray/shut-off operations.
  • Chrome plated brass nozzle is available upon request.
  • Hose has working pressure of 12 bar and bursting pressure of 50 bar and it is red in color, black color also available upon request.
  • Inlet stop valve 1” size in made of brass and finished with chrome. Brass finish available upon request.
  • Each unit is hydrostatically tested at 18 bar.
  • For fixed hose reel, a hose guide could be supplied upon request.
  • Swinging hose reel is mounted on an arm which swings 180° and the hose can be run out in all directions without a hose guide.
  • In automatic models, the valve opens automatically within three revolutions of the reel.
  • Fire hose reel is an efficient and reliable fire-fighting unit suitable for use in all types of buildings.
  • The water is supplied through the center of the reel, so the unit is always ready for immediate use.

Specifications

Type Model No Size of Hose Reel dia A (mm) Depth B (mm) Version
Fixed Manual NFH-F-25M 25mm dia(1”)Length=30M 550 285 Fixed
NFH-F-19M 19mm dia(¾”)Length=30M 550 240 Fixed
Fixed Automatic NFH-F-25A 25mm dia(1”)Length=30M 550 285 Fixed
NFH-F-19A 19mm dia(¾”)Length=30M 550 240 Fixed
Swinging Manual NFH-C-25M 25mm dia(1”)Length=30M 550 260 Arm Type
NFH-C-19M 19mm dia(¾”)Length=30M 550 210 Arm Type
NFH-W-25M 25mm dia(1”)Length=30M 550 275 Pipe Type
NFH-W-19M 19mm dia(¾”)Length=30M 550 230 Pipe Type
Swinging Automatic NFH-C-25A 25mm dia(1”)Length=30M 550 275 Arm Type
NFH-C-19A 19mm dia(¾”)Length=30M 550 230 Arm Type
NFH-W-25A 25mm dia(1”)Length=30M 550 275 Pipe Type
NFH-W-19A 19mm dia(¾”)Length=30M 550 230 Pipe Type
