Special double vertical recessed type cabinets

Design features :

  • Upper compartment specially designed for mounting swinging pipe type hose reels (size - 1” x 30 mtr. / ¾” x 30 mtr. / Manual or Automatic).

  • Lower compartment can accommodate the following:

    Fire hose rack 1.5” x 30 mtr. / 2.5” x 30 mtr. with complete accessories or 2.5” x 30 mtr. lay flat fire hose + 2 portable extinguishers + 2.5” landing valve + nozzle.

  • Special hose reel mounting bracket with minimal cabinet depth.

  • Swinging pipe type hose reel can be mounted on either side of the cabinet based on the site condition/ riser access.

  • Inlet lock shield control valve, pressure reducing valve are fixed.

  • Cabinet can be with Stainless Steel facia and Back box Electrogalvanised Steel sheet / Full Stainless Steel sheet Brush or Mirror Finish.

  • Cabinet painted with Red (RAL 3000) electrostatic powder coating.

    Other colors are available upon request.

Specifications

Model No

Dimensions in cms

Material of Construction

Cabinet Mounting

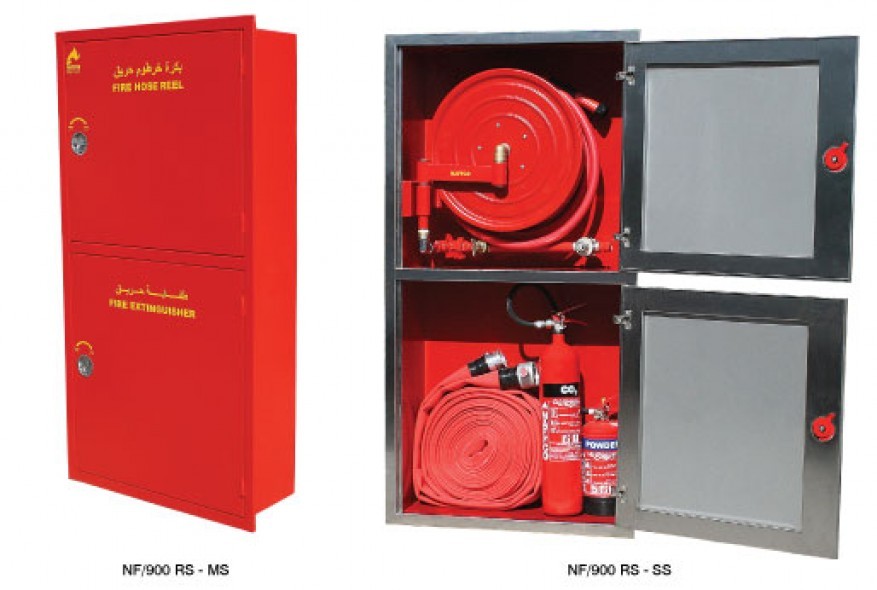

NF/900 RS-MS

H=160 W=80 D=30

Electro-galvanised

Steel Sheet

Recessed

Type

NF/900 RS-SS

H=160 W=80 D=30

Full S.Steel,

Brush / Mirror finish

OR

Back box electrogalvanised

steel with S.Steel door & architrave

Recessed

Type

Note :

For recessed cabinet the wall opening should be of 1 cm additional on all sides.
