Design features :

• Upper compartment specially designed for mounting swinging pipe type hose reels (size - 1” x 30 mtr. / ¾” x 30 mtr. / Manual or Automatic).
• Lower compartment can accommodate the following:
  Fire hose rack 1.5” x 30 mtr. / 2.5” x 30 mtr. with complete accessories or 2.5” x 30 mtr. lay flat fire hose + 2 portable extinguishers + 2.5” landing valve + nozzle.
• Special hose reel mounting bracket with minimal cabinet depth.
• Swinging pipe type hose reel can be mounted on either side of the cabinet based on the site condition/ riser access.
• Inlet lock shield control valve, pressure reducing valve are fixed.
• Cabinet can be with Door Made of Electrogalvanised Steel sheet / Full Stainless Steel sheet Brush or Mirror Finish.
• Cabinet painted with Red (RAL 3000) electrostatic powder coating.
  Other colors are available upon request.

Specifications

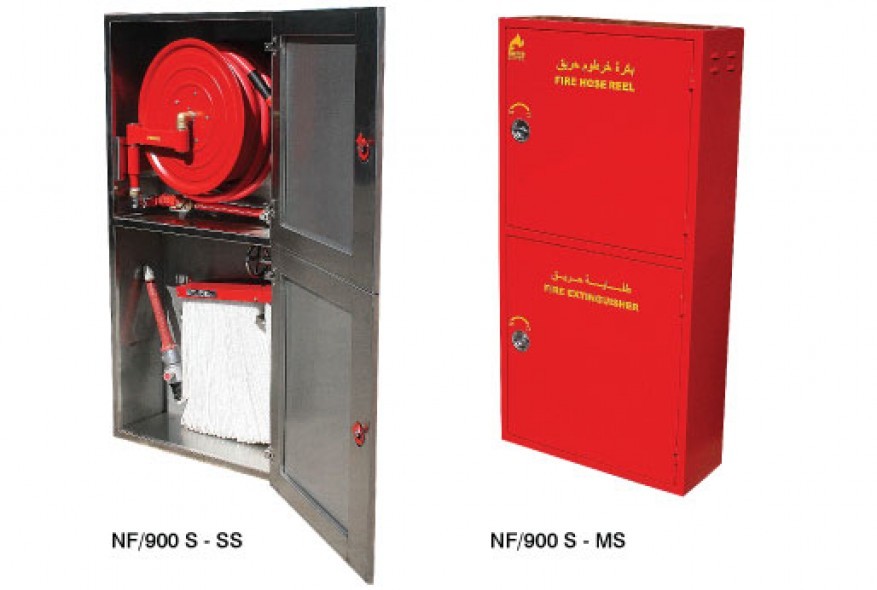

Model No	Dimensions in cms	Material of Construction	Cabinet Mounting
NF/900 S-MS	H=160 W=80 D=30	Electro-galvanised Steel Sheet	Surface Mounted
NF/900 S-SS	H=160 W=80 D=30	Full stainless steel, Brush / Mirror finish	Surface Mounted

Note :

For recessed cabinet the wall opening should be of 1 cm additional on all sides.
