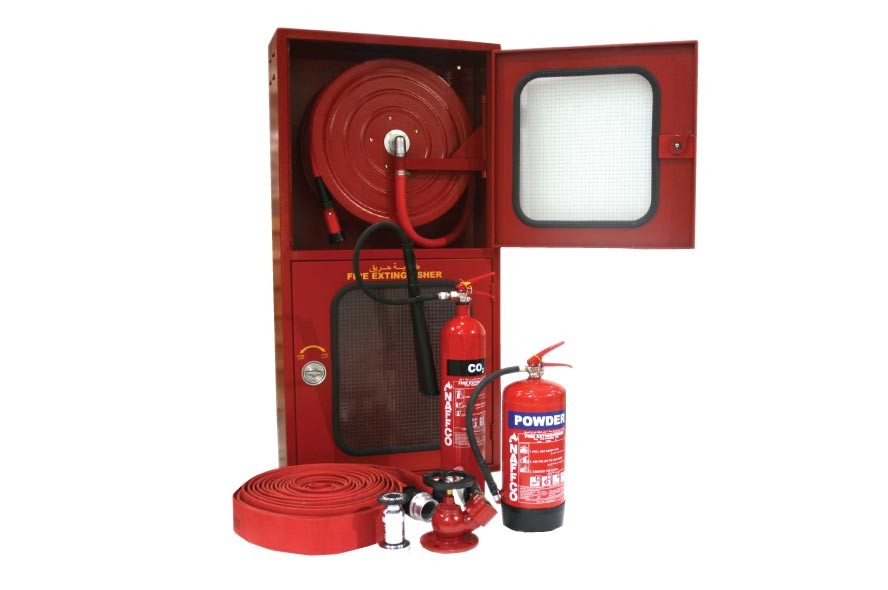

Design features :
- Cabinet with door made of 1.2mm electro-galvanised steel sheet
- Recessed type door lock & handle with chrome plating
- Cabinet painted with red electrostatic powder coating. Other colours are available on request
- Upper compartment consists of: hose reel with 1”x 30m hose or 3/4” x 30m hose
- Lower compartment consist of : 2.5” x 100 feet polyester fire hose. Other sizes and lengths available on request
- 2/2.5” landing valve with quick coupling. Other sizes available.2.5” adjustable nozzle
Optional :
- 10Lbs Dry powder or Clean Agent Fire Extinguisher.
-
LPCB approved fire hose reel double cabinet available upon request.
Specifications
| Model No |
Size of Hose |
Dimensions cm |
Material of Construction |
Valve Pening |
Cabinet Mounting |
| NF/900S |
25mm dia(1”) Length=30m |
H=149 W=72 D=28 |
Electro-galvanised Steel Sheet |
Manual |
Surface Mounted |
| NF/900AS |
25mm dia(1”) Length=30m |
H=149 W=72 D=28 |
Electro-galvanised Steel Sheet |
Automatic |
Surface Mounted |
| NF/SB900AS |
25mm dia(1”) Length=30m |
H=155 W=72 D=31 |
Stainless Steel Brush Finish |
Automatic |
Surface Mounted |
| NF/SM900S |
25mm dia(1”) Length=30m |
H=155 W=72 D=31 |
Stainless Steel Mirror Finish |
Manual |
Surface Mounted |
| NF/900R |
25mm dia(1”) Length=30m |
H=140 W=70 D=28 |
Electro-galvanised Steel Sheet |
Manual |
Recessed |
| NF/900AR |
25mm dia(1”) Length=30m |
H=140 W=70 D=28 |
Electro-galvanised Steel Sheet |
Automatic |
Recessed |
| NF/SB900R |
25mm dia(1”) Length=30m |
H=140 W=70 D=28 |
Stainless Steel Brush Finish |
Manual |
Recessed |
| NF/SM900AR |
25mm dia(1”) Length=30m |
H=140 W=70 D=28 |
Stainless Steel Mirror Finish |
Automatic |
Recessed |
Note :
For recessed cabinet, the wall opening should be 1cm additional on all sides.
|
