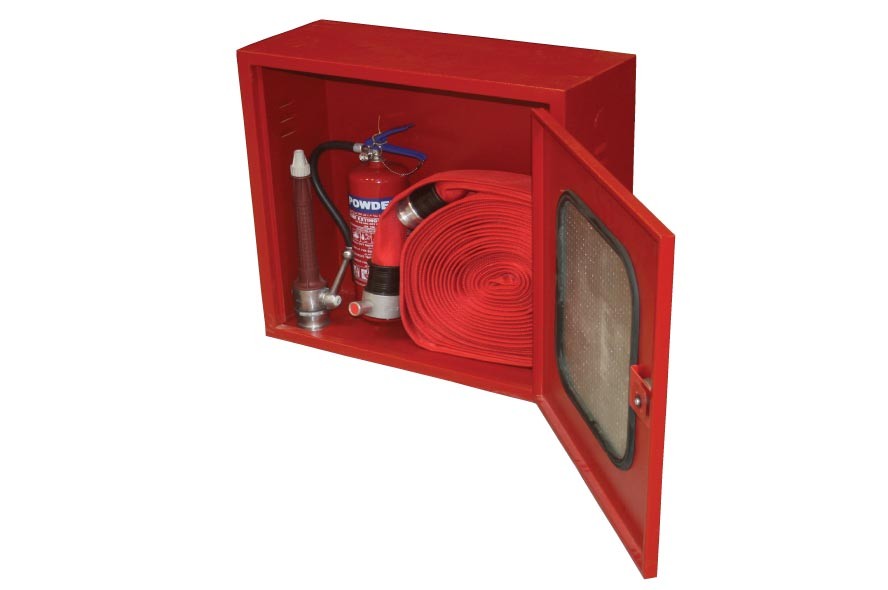

Fire Hose Cabinet

Design features :

  • Cabinet with door made of 1.2mm electro-galvanised steel sheet.
  • Recessed type door lock & handle with chrome plating.
  • Cabinet painted with red electrostatic powder coating. Other colours are available on request.
  • 2.5”x100 feet polyester fire hose. Other sizes and lengths are available on request.
  • 2/2.5” landing valve with quick coupling. Other sizes also available.
  • 2.5” adjustable nozzle.

Optional :

  • 10 lbs dry powder or clean agent fire extinguisher.



NAFFCO NF/450

Specifications

Model No

Size of Hose

Dimensions cm Material of Construction Cabinet Mounting
NF/450S

2.5” dia Length = 100ft

H=70 W=75 D=28 Electro-galvanised Steel Sheet Surface Mounted
NF/SB450S

2.5” dia Length = 100ft

H=70 W=75 D=28 Stainless Steel Brush Finish Surface Mounted
NF/SM450S

2.5” dia Length = 100ft

H=70 W=75 D=28 Stainless Steel Mirror Finish Surface Mounted
NF/450R

2.5” dia Length = 100ft

H=70 W=75 D=28 Electro-galvanised Steel Sheet Recessed
NF/SB450R

2.5” dia Length = 100ft

H=70 W=75 D=28 Stainless Steel Brush Finish Recessed
NF/SM450R

2.5” dia Length = 100ft

H=70 W=75 D=28 Stainless Steel Mirror Finish Recessed

Note :

  • For recessed cabinet, the wall opening should be of 1cm additional on all sides.
