Home Page » Hose Reels & Cabinets » Fire Hose Rack Cabinet

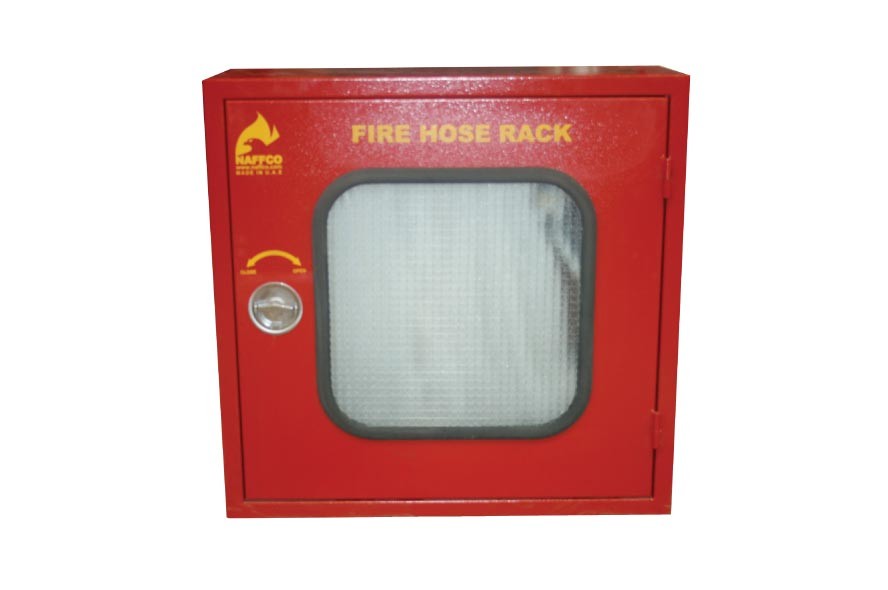

Fire Hose Rack Cabinet

Design features :

  • Cabinet with door made of 1.2mm electro-galvanised steel sheet.
  • Recessed type door lock & handle with chrome plating.
  • Cabinet painted with red electrostatic powder coating. Other colours are available on request.
  • Superior quality pu lined 1.5” or 2.5” fire hose.
  • Hose rack mounted inside the cabinet.
  • 1.5”or 2.5” angle valve.
  • 1.5” or 2.5” brass finish adjustable fog nozzle.

Optional :

  • 1.5”or 2.5” angle valve with built-in pressure reduction capacity.
  • Stainless steel cabinet with brush or mirror finish available.



NAFFCO NF/750

Specifications

Model no Size of hose Dimensions cm Material of construction Cabinet mounting
NF/SB750S 2.5” dia Length=100ft 1.5” dia Length=100ft H=85 W=80 D=25 H=75 W=70 D=20 Stainless Steel Brush Finish Surface Mounted
NF/SM750S 2.5” dia Length=100ft 1.5” dia Length=100ft H=85 W=80 D=25 H=75 W=70 D=20 Stainless Steel Mirror Finish Surface Mounted
NF/750R 2.5” dia Length=100ft 1.5” dia Length=100ft H=85 W=80 D=25 H=75 W=70 D=20 Electro-galvanised Steel Sheet Recessed
NF/SB750R 2.5” dia Length=100ft 1.5” dia Length=100ft H=85 W=80 D=25 H=75 W=70 D=20 Stainless Steel Brush Finish Recessed
NF/SM750R 2.5” dia Length=100ft 1.5” dia Length=100ft H=85 W=80 D=25 H=75 W=70 D=20 Electro-galvanised Steel Sheet Recessed
